CREE Lighting CR22-20L-50K-10V-EB14

CR22-20L-50K-10V-EB14 Product Description

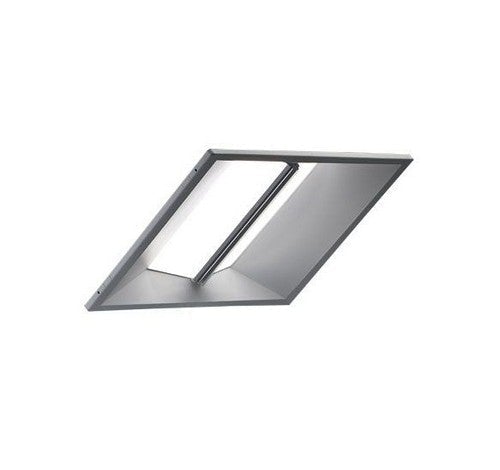

This 22 watt 2x2 LED troffer fixture with 0-10V dimming utilizes Cree TrueWhite Technology and is great for renovating or new construction projects. It has a 50,000 hour lamp life, 10 year warranty, uses 120-277V, and features emergency backup - 1400 lumens.

FEATURES :

Utilizes Cree TrueWhite®
Technology (90 CRI) or available in 80+ CRI
Active Color Management
Room-Side Heat Sink
Assembled in the US & Mexico
Efficacy:90-100 LPW
Delivered Light Output: 2000, 3200 lumens
Input Power: 22-35 watts
CRI: 90 CRI (Cree TrueWhite® Technology), 80+ CRI
CCT: 3000K, 3500K, 4000K, 5000K
Input Voltage: 120-277 VAC or 347 VAC
Limited Warranty†: 10 Years
Lifetime: Designed to last from 50,000 hours (HD), 75,000 hours (Standard TW), and 100,000 hours (HE TW)
Controls: Step Level to 50%, 0-10V Dimming or Lutron EcoSystem® Enabled to 5%
Mounting: Recessed

SPECIFICATIONS :

CREE TRUEWHITE® TECHNOLOGY OPTION
A revolutionary way to generate high-quality white light, Cree TrueWhite® Technology is a patented approach that delivers an exclusive combination of 90+ CRI, beautiful light characteristics, and lifelong color consistency, all while maintaining high luminous efficacy - a true no compromise solution..

CREE LED TECHNOLOGY
Cree’s total systems approach to product development is a comprehensive engineering philosophy that combines the most advanced LED sources, driver technologies, optics and forms. The result is highly reliable luminaire solutions for both indoor and outdoor applications that reduce energy use, extend lifetimes, and maximize illumination performance and quality.

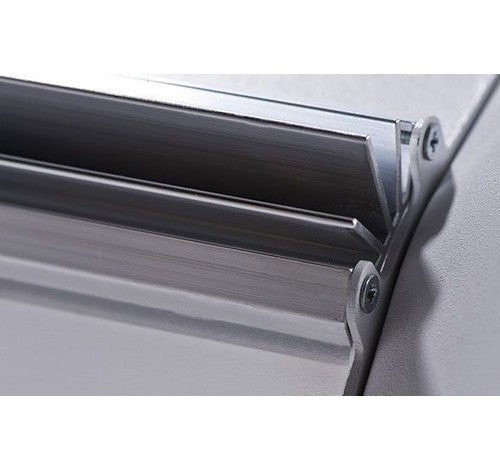

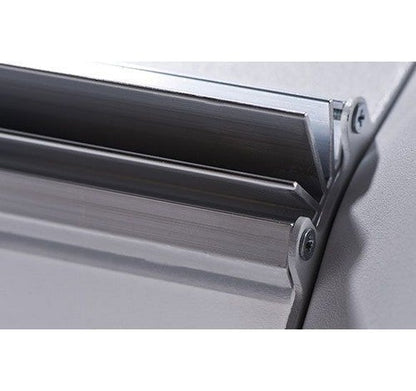

ROOM-SIDE HEAT SINK
An innovative thermal management system designed to maximize cooling effectiveness by integrating a unique room-side heat sink into the diffusing lens. This breakthrough design creates a pleasing architectural aesthetic while conducting heat away from LEDs in a temperature-controlled environment. This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency.

CONSTRUCTION & MATERIALS
Durable 20-gauge steel housing with standard troffer access plate for electrical installation.
Field replaceable light engine integrates LEDs, driver, power supply, thermal management, and optical mixing components.
One-piece lower reflector finished with a textured high reflectance white polyester powder coating creates a comfortable visual transition from the lens to the ceiling plane.
Provided t-bar clips and holes for mounting support wires enable recessed or suspended installation.
Individual fixtures may be mounted end to end for a continuous row of illumination.

OPTICAL SYSTEM
Unique combination of reflective and refractive optical components achieves a uniform, comfortable appearance while eliminating pixelation and color fringing.
Components work together to optimize distribution, balancing the delivery of high illuminance levels on horizontal surfaces with an ideal amount of light on walls and vertical surfaces. This increases the perception of spaciousness.
Diffusing lens integrated with upward-facing LED strip eliminates direct view of LEDs while lower reflector balances brightness of lens with the ceiling to create a low-glare high angle appearance.

ELECTRICAL SYSTEM
Integral, high-efficiency driver and power supply.
Power Factor = 0.9 nominal
Input Power: Stays constant over life.
Input Voltage: 120-277V, 347V- 50/60Hz
Battery Backup: Consult factory.
Temperature Rating: Designed to operate in temperatures 0-35 C and below room side and plenum side.
Total Harmonic Distortion: < 20%

CONTROLS
Step dimming to 50% comes standard.
Optional continuous dimming to 5% with 0-10V DC control protocol.
Optional Lutron EcoSystem® Enabled option allows seamless integration with Lutron EcoSystem controls.

REGULATORY & VOLUNTARY QUALIFICATIONS
UL924 (EB14 option).
cULus Listed.
DLC qualified.
Suitable for damp locations.
Designed for Indoor use

Best Seller Product: No
Call For Price: No
Type of Area: Gas Station & Convenience Store, Home & Architectural, Large Retail & Open Areas, Office & Small Retail
Ballast Factor: 1.00
Certifications: CUL Listed, DLC Approved, ROHS, UL Listed
Color Temp: 3000K,3500K,4000K,5000K
Dimmable: Yes
Lamp Life: 50,000 hours
CRI: 90

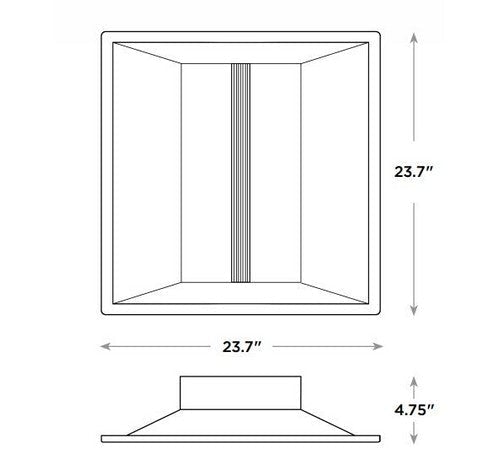

Dimensions: 23.7" x 23.7" x 4.75"
Length: 23.7"
Width: 23.7"
Height: 4.75"
Lumen Output: 2000
Manufacturer: CREE
Product Warranty: 10 Year
Minimum Start Temperature: 32 Deg F
Technology: LED - New Fixture
Voltage: Multivolt 120V-277V
Wattage: 22 Watt
Weight Each: 10 lbs
Ballast Start Type: Instant Start
Fixture Type: 2 x 2 Ft - New Fixture
Fixture Length: 2 Feet / 24 Inches
Beam Angle: Normal

About CREE Lighting :

Cree Lighting is a market-leading innovator of Indoor, Outdoor, and Consumer Bulb LED lighting. We are uniquely positioned to innovate new ways in which lighting will serve as a platform for emerging technologies and capabilities that will enrich lives, improve society and safeguard our planet.
