CREE LED Lighting ZR22T-32L-35K-10V 35W 2x2 LED Troffer Light Fixture Dimming

2 sold in last 8 hours

ZR22T-32L-35K-10V-NO

$167.00
$167.00
customers are viewing this product
This 35 watt 2x2 LED troffer in a color temperature of 4000K was developed using Cree's innovative TrueWhite technology in order to deliver high quality and energy efficient light at 90 lumens per watt. The ZR22 LED troffer is designed to last up to 75,000 hours and delivers 3200 lumens with advanced dimming capabilities to allow for increased energy savings. The troffer is ideal for both new construction or renovation.

FEATURES :

Utilizes Cree TrueWhite® Technology
Assembled in the US & Mexico
Efficacy: 90 LPW
Delivered Light Output: 3200 lumens
Input Power: 35 watts
CRI: 90 CRI
CCT: 3500K, 4000K
Input Voltage: 120-277 VAC
Limited Warranty: 10 years†
Lifetime: Designed to last up to 75,000 hours
Controls: 0-10V (Standard)*
Mounting: Recessed

SPECIFICATIONS :

CREE TRUEWHITE® TECHNOLOGY
A revolutionary way to generate high efficacy light with superior color rendering and lifelong color consistency. Cree TrueWhite Technology delivers a no compromise solution to enhance any space.

CONSTRUCTION & MATERIALS
Durable cold rolled steel housing provides strength and uniformity
Ultra-thin 3.9" fixture height and lightweight design effectively target a broad range of plenum spaces and allow for easy installations
Fixture is pre-painted for enhanced smooth finish
Provided t-bar clips and holes for mounting support wires enable recessed or suspended installation
Fixture sides and ends are hemmed in for safe, easy handling

OPTICAL SYSTEM
Unique fixture design creates perfect balance of both horizontal and vertical illumination
Optimized smooth lens eliminates pixelation and delivers a low-glare, diffused light distribution

ELECTRICAL SYSTEM
Cree born components including highly efficacious Cree® LED chips along with an integral high-efficiency Cree® driver
Power Factor = 0.9 nominal
Input Power: Stays constant over life
Input Voltage: 120-277V, 50/60Hz
Battery Backup: Consult factory
Temperature Rating: Designed to operate in temperatures 0-35˚C and below room side and plenum side
Total Harmonic Distortion: <20%

CONTROLS
Continuous dimming to 5% with 0-10V controls comes standard*

REGULATORY & VOLUNTARY QUALIFICATIONS
UL924 (EB option)
cULus Listed
Suitable for damp locations
Designed for Indoor use

Best Seller Product: No
UPC: 810048028955
Call For Price: No
Type of Area: Gas Station & Convenience Store, Industrial & Warehouse, Large Retail & Open Areas, Office & Small Retail
Ballast Factor: 1.00
Certifications: CUL Listed, DLC Approved, ROHS, UL Listed
Color Temp: 4000K
Dimmable: Yes
Lamp Life: Up to 75,000 hours
CRI: 90

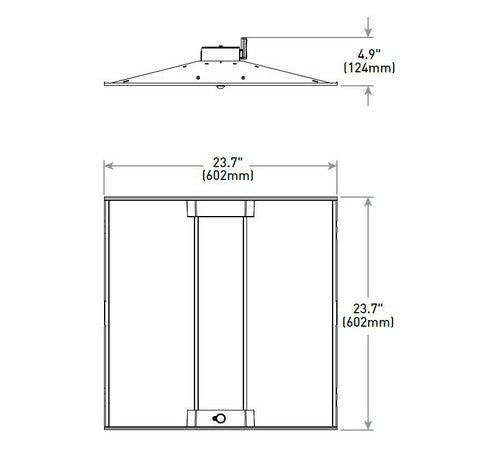

Dimensions: L 23.7" W 23.7" x H 3.9"
Length: 23.70"
Width: 23.70"
Height: 3.90"
Lumen Output: 3200
Manufacturer: CREE
Product Warranty: 10 Year
Part Number: ZR22T-32L-40K-10V
Minimum Start Temperature: 32 Deg F
Technology: LED - New Fixture
Voltage: Multivolt 120V-277V
Wattage: 35 Watt
Weight Each: 10.00 lbs
Ballast Start Type: Instant Start
Fixture Type: 2 x 2 Ft - New Fixture
Fixture Length: 2 Feet / 24 Inches
Beam Angle: Normal
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
