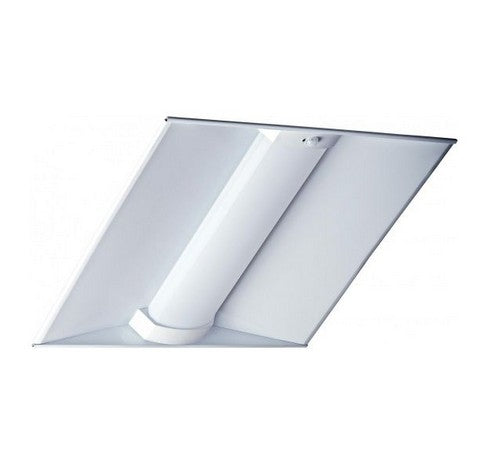

CREE LED Lighting ZR22T-32L-35K-CMA-FL 35 Watt 2x2 LED Troffer Light Fixture Dimmable with SmartCast Technology

2 sold in last 8 hours
ZR22T-32L-35K-CMA-FL-NONE-NFP
$210.63
$210.63
customers are viewing this product
This 35 watt 2x2 LED troffer with CREE's SmartCast Technology is one of the most intelligent light solutions in the industry with advanced occupancy sensing and wireless communication to achieve up to 70% in energy savings and reduced maintenance at up to half the cost of other lighting solutions. The ZR22 delivers the highest quality light in a color temperature of 3500K at 90 lumens per watt and an incredible 3200 lumens. The troffer is ideal for both new construction or renovation.

SPECIFICATIONS :

CREE SMARTCAST® TECHNOLOGY
Cree SmartCast® Technology is the most intuitive and easiest to install intelligent light solution on the market. SmartCast Technology delivers up to 70% energy savings at up to half the cost of other solutions. Luminaires combine best-in-class light with onboard sensors and intelligence to deliver a better light experience. Extreme energy productivity, code compliance and a better light experience without any extra design, installation or setup work.

CREE TRUEWHITE® TECHNOLOGY
A revolutionary way to generate high-quality white light, Cree TrueWhite® Technology is a patented approach that delivers an exclusive combination of 90+ CRI, beautiful light characteristics, and lifelong color consistency, all while maintaining high luminous efficacy – a true no compromise solution.

CONSTRUCTION & MATERIALS
Durable 22 ga. cold rolled steel housing provides strength and uniformity
Ultra-thin 3.9" fixture height and lightweight design effectively target a broad range of plenum spaces and allow for easy installations
Fixture is pre-painted for enhanced smooth finish
Includes t-bar clips and holes for mounting support wires (by others)
Fixture sides and ends are hemmed in for safe, easy handling
Includes lens gasket to prevent ingress of insects
Not for installation within 3" (76mm) of insulation

OPTICAL SYSTEM
Unique fixture design creates perfect balance of both horizontal and vertical illumination
Optimized smooth acrylic lens eliminates pixelation and delivers a low-glare, diffused light distribution

ELECTRICAL SYSTEM
Cree born components including highly efficacious Cree® LED chips along with an integral high-efficiency Cree® driver
Power Factor = 0.9 nominal
Input Power: Stays constant over life
Input Voltage: 120-277V, 50/60Hz
Battery Backup: Consult factory
Temperature Rating: Designed to operate in temperatures 0-35˚C and below room side and plenum side
Total Harmonic Distortion: <20%
Dimming: 5%-100%

REGULATORY & VOLUNTARY QUALIFICATIONS
UL924 (EB option)
cULus Listed
Suitable for damp locations
Designed for Indoor use
DLC qualified.
RoHS compliant.
Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions.

INTEGRAL MOTION SENSOR
Passive infrared (PIR)
Coverage area: 100 sq. ft. (30.5m2) at 10 ft. (3.0m) mounting height
Not intended to be mounted higher than 12 ft. (3.7m)
Operation:
Grouped with a wall control: Luminaire will operate in vacancy mode (manual on/auto-off)
Not grouped with a wall control: Luminare will operate in occupancy mode (auto-on/auto-off)
Luminaires operate at full intensity until OneButton Setup is initiated by the CREE Configuration Tool

AMBIENT LIGHT SENSOR
Sensor response matches response of human eye
Not intended to be mounted higher than 12 ft. (3.7m)
Luminaires operate at full intensity until OneButton™ Setup is initiated by the Cree Configuration Tool
Daylight harvesting calibration performed automatically during OneButton™ Setup

INTEGRAL WIRELESS COMMUNICATION
2.4GHz wireless mesh technology with AES 128-bit encryption
Self assigns to quietest channel during OneButton™ Setup
Range:
30 ft. (9.1m) in typical commercial applications
300 ft. (91.4m) open air without obstructions
Network: 250 devices max.
Space: 100 devices max. per group
FCC certified
IC certified

LUMINAIRE
Luminaires operate at full intensity until OneButton™ Setup is initiated by the Cree Configuration Tool
10 year power fail memory of settings
