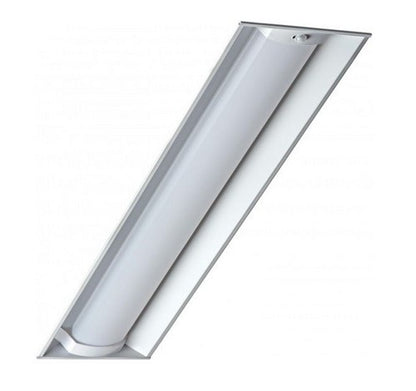

CREE LED Lighting ZR14T-40L-35K-CMA-FL 40 Watt 1x4 LED Troffer Light Fixture Dimmable with SmartCast Technology Sensors

2 sold in last 8 hours
ZR14T-40L-35K-CMA-FL-NONE-NFP
$232.69
$232.69
customers are viewing this product
This 40 watt 1x4 LED troffer with CREE's SmartCast Technology is one of the most intelligent light solutions in the industry with advanced occupancy sensing and wireless communication to achieve up to 70% in eneryg savings and reduced maintenance at up to half the cost of other lighting solutions. The ZR14 delivers the highest quality light in a color temperature of 3500K at 90 lumens per watt and an incredible 4000 lumens. The troffer is ideal for both new construction or renovation.

SPECIFICATIONS :

CREE SMARTCAST® TECHNOLOGY
Cree SmartCast® Technology is the most intuitive and easiest to install intelligent light solution on the market. SmartCast Technology delivers up to 70% energy savings at up to half the cost of other solutions. Luminaires combine best-in-class light with onboard sensors and intelligence to deliver a better light experience. Extreme energy productivity, code compliance and a better light experience without any extra design, installation or setup work.

CREE TRUEWHITE® TECHNOLOGY
A revolutionary way to generate high-quality white light, Cree TrueWhite® Technology is a patented approach that delivers an exclusive combination of 90+ CRI, beautiful light characteristics, and lifelong color consistency, all while maintaining high luminous efficacy – a true no compromise solution.

CONSTRUCTION & MATERIALS
Durable 22 ga. cold rolled steel housing provides strength and uniformity
Ultra-thin 3.9" fixture height and lightweight design effectively target a broad range of plenum spaces and allow for easy installations
Fixture is pre-painted for enhanced smooth finish
Includes t-bar clips and holes for mounting support wires (by others)
Fixture sides and ends are hemmed in for safe, easy handling
Includes lens gasket to prevent ingress of insects
Not for installation within 3" (76mm) of insulation

OPTICAL SYSTEM
Unique fixture design creates perfect balance of both horizontal and vertical illumination
Optimized smooth acrylic lens eliminates pixelation and delivers a low-glare, diffused light distribution

ELECTRICAL SYSTEM
Cree born components including highly efficacious Cree® LED chips along with an integral high-efficiency Cree® driver
Power Factor = 0.9 nominal
Input Power: Stays constant over life
Input Voltage: 120-277V, 50/60Hz
Battery Backup: Consult factory
Temperature Rating: Designed to operate in temperatures 0-35˚C and below room side and plenum side
Total Harmonic Distortion: <20%
Dimming: 5%-100%

REGULATORY & VOLUNTARY QUALIFICATIONS
UL924 (EB option)
cULus Listed
Suitable for damp locations
Designed for Indoor use
DLC qualified.
RoHS compliant.
Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions.

Best Seller Product: No
Call For Price: No
Type of Area: Gas Station & Convenience Store, Industrial & Warehouse, Large Retail & Open Areas, Office & Small Retail
Ballast Factor: 1.00
Certifications: CUL Listed, DLC Approved, ROHS, UL Listed
Color Temp: 3500K
Dimmable: Yes
Lamp Life: 75,000 Hours
CRI: 90
Dimensions: L 47.7" x W 11.7" x H 4.9"
Length: 47.70"
Width: 11.70"
Height: 4.90"
Lumen Output: 4000
Manufacturer: CREE
Product Warranty: 5 Year
Part Number: ZR14-40L-35K-CMA
Minimum Start Temperature: 32 Deg F
Technology: LED
Voltage: Multivolt 120V-277V
Wattage: 40 Watt
Weight Each: : 10.00 lbs
Fixture Type: 1 x 4 Ft - New Fixture
