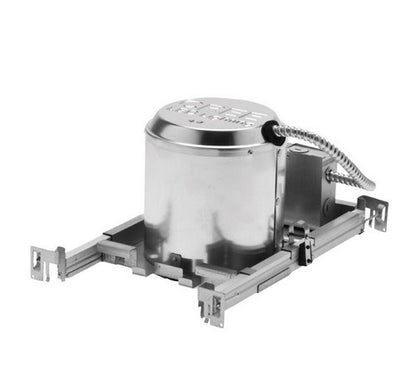

This H6 architectural housing can accomodate all CREE six inch GU24 based downlights. It was designed for use with the LR6 and CR6 downlight series in new construction applications. The H6-GU24 is compatible with the CR6-GU24, LR6-GU24, LR6C-GU24, LE6-GU24, LE6C-GU24, and LR6-DR Series (120V).
SPECIFICATIONS :
Construction & Materials:
Recessed housing with integral nailer and ceiling grid attachment accommodates
Cree 277V and GU24 six-inch LED downlights in ceiling thicknesses from 0.25” to 1.25”.
Gasketed housing enables air-tight fit to effectively isolate housing assembly from conditioned space below.
Adjustable bar-hangers span from 14” to 24.5” without sag.
Suitable for insulated or non-insulated ceilings.

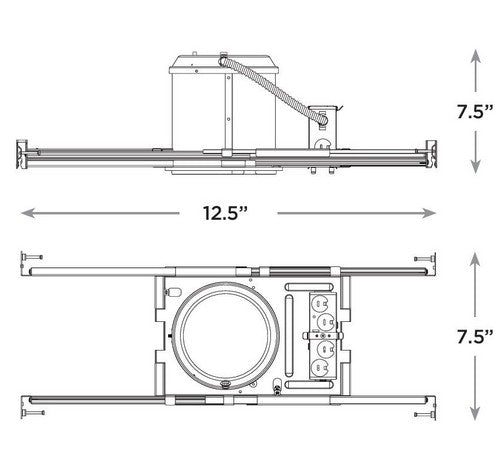

Dimensions: L 12.5” x W 7.5” x H 7.5”
Regulatory & Voluntary Qualifications:
cULus Listed
IC air-tight rated, tested in accordance with ASTM E283.
Title-24 compliant when utilized with GU24 socket.
Suitable for damp locations.
Best Seller Product: No
UPC: 813959011306
Call For Price: No
Certifications: CE, UL Listed
Dimmable: No
Dimensions: 12.5" x 7.5" x 7.5"
Length: 12.5"
Width: 7.5"
Height: 7.5"
Manufacturer: CREE
Part Number: H6-GU24
Weight Each: 5.00 lbs
Ballast Start Type: Instant Start
Beam Angle: Normal
