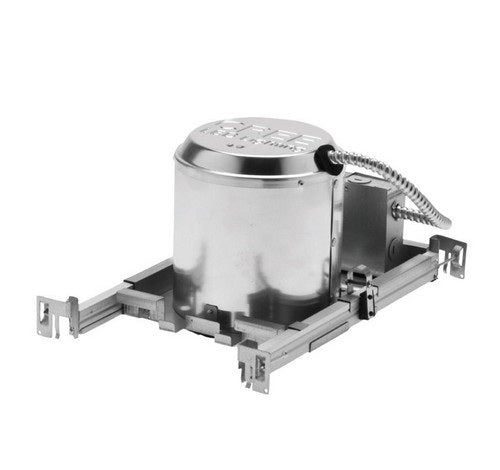

This H6-277V architectural housing can accomodate all CREE six inch 277V downlights. It was designed for use with the LR6 downlight series in new construction applications. The H6-GU24 is compatible with the LR6-277V, LR6C-277V, and the LR6-DR Series (277V).
SPECIFICATIONS :
Construction & Materials:
Recessed housing with integral nailer and ceiling grid attachment accommodates
Cree 277V and GU24 six-inch LED downlights in ceiling thicknesses from 0.25” to 1.25”.
Gasketed housing enables air-tight fit to effectively isolate housing assembly from conditioned space below.
Adjustable bar-hangers span from 14” to 24.5” without sag.
Suitable for insulated or non-insulated ceilings.

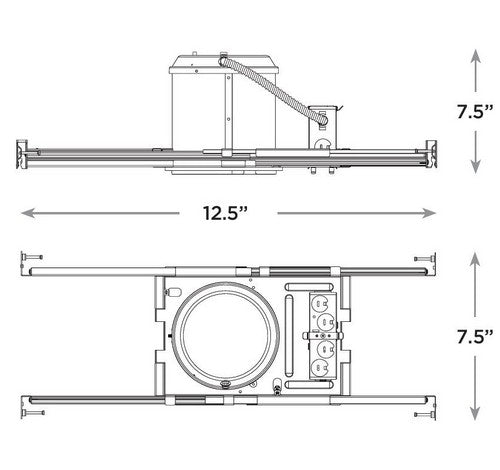

Dimensions: L 12.5” x W 7.5” x H 7.5”
Regulatory & Voluntary Qualifications:
cULus Listed
IC air-tight rated, tested in accordance with ASTM E283.
Title-24 compliant when utilized with GU24 socket.
Suitable for damp locations.
Best Seller Product: No
UPC: 813959011177
Call For Price: No
Certifications: UL Listed
Dimmable: No
Dimensions: 12.5" x 7.5" x 7.5"
Length: 12.5"
Width: 7.5"
Height: 7.5"
Manufacturer: CREE
Part Number: H6-277V
Weight Each: 5.00 lbs
Ballast Start Type: Instant Start
Beam Angle: Normal
