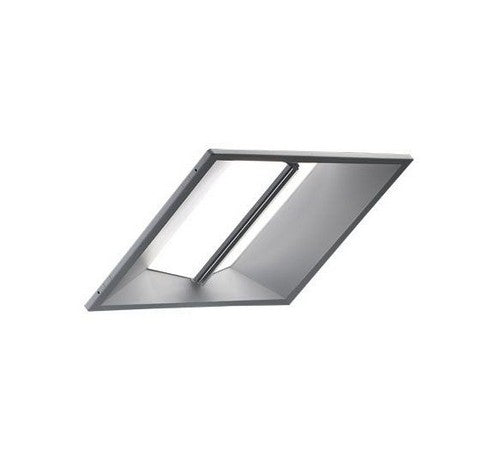

CREE LED Lighting CR22-32L-KK-S-HD 35W 2x2 Architectural LED Troffer Light Fixture Step Dimming

2 sold in last 8 hours
CR22-32L-30K-S-HD-NO
$240.34
$240.34
customers are viewing this product
This 35 watt CR22 (HD) 2x2 Architectural LED troffer uses CREE's TrueWhite Technology in order to provide 3200 lumens of high quality light in color temperatures like 3000K, 3500K, 4000K, 5000K. It provides step dimming to 50%, 50,000 lifetime hours, and a ten year warranty. The CR22's lightweight design allows for easy application for either commercial new construction or renovated spaces.

FEATURES :

Utilizes Cree TrueWhite® Technology (90 CRI) or available in 80+ CRI
Active Color Management
Room-Side Heat Sink
Assembled in the US & Mexico
Efficacy: 90 LPW
Delivered Light Output: 2000, 3200 lumens
Input Power: 35 watts
CRI: 90 CRI (Cree TrueWhite® Technology), 80+ CRI
CCT: 3000K, 3500K, 4000K, 5000K
Input Voltage: 120-277 VAC or 347 VAC*
Warranty†: 10 years
Lifetime: Designed to last from 50,000 hours (HD), 75,000 hours (Standard TW), and 100,000 hours (HE TW)
Controls: Step Level to 50%, 0-10V Dimming or Lutron EcoSystem Enabled to 5%
Mounting: Recessed

SPECIFICATIONS :

CREE TRUEWHITE® TECHNOLOGY
A revolutionary way to generate high-quality white light, Cree TrueWhite® Technology mixes the light from the highest performing red and unsaturated yellow LEDs. This patented approach delivers an exclusive combination of 90+ CRI, beautiful light characteristics, and lifelong color consistency, all while maintaining high luminous efficacy—a true no compromise solution.

ROOM-SIDE HEAT SINK

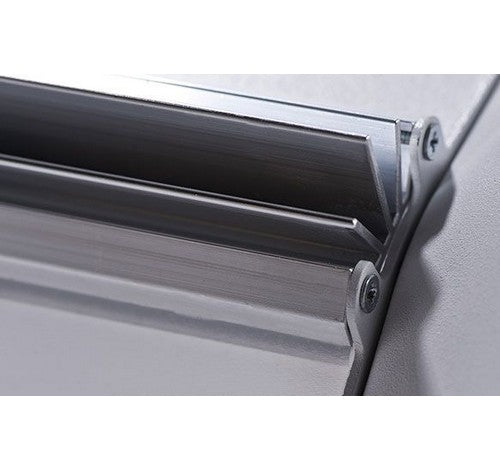

An innovative thermal management system designed to maximize cooling effectiveness by integrating a unique room-side heat sink into the diffusing lens. This breakthrough design creates a pleasing architectural aesthetic while conducting heat away from LEDs in a temperature-controlled environment. This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency.

CONSTRUCTION & MATERIALS
Durable 20-gauge steel housing with standard troffer access plate for electrical installation
Field replaceable light engine integrates LEDs, driver, power supply, thermal management, and optical mixing components.
One-piece lower reflector finished with a textured high reflectance white polyester powder coating
Provided t-bar clips and holes for mounting support wires enable recessed or suspended installation
Individual fixtures may be mounted end to end for a continuous row of illumination

OPTICAL SYSTEM
Unique combination of reflective and refractive optical components achieves a uniform, comfortable appearance while eliminating pixelation and color fringing
Components work together to optimize distribution on all surfaces ton increase spaciousness
Diffusing lens integrated with upward-facing LED strip eliminates direct view of LEDs while lower reflector balances brightness of lens with the ceiling to create a low-glare high angle appearance

ELECTRICAL SYSTEM
Integral, high-efficiency driver and power supply
Power Factor = 0.9 nominal
Input Power: Stays constant over life
Input Voltage: 120-277V, 347V- 50/60Hz
Battery Backup: Consult factory
Temperature Rating: Designed to operate in temperatures 0-35 C and below room side and plenum side
Total Harmonic Distortion: < 20%

CONTROLS
Step dimming to 50% comes standard
Optional continuous dimming to 5% with 0-10V DC control protocol
Optional Lutron EcoSystem® Enabled option allows seamless integration with Lutron EcoSystem controls

REGULATORY & VOLUNTARY QUALIFICATIONS
UL924 (EB14 option)
cULus Listed
DLC qualified
Suitable for damp locations
Designed for Indoor use

Best Seller Product: No
Call For Price: No
Type of Area: Gas Station & Convenience Store, Large Retail & Open Areas, Office & Small Retail
Ballast Factor: 1.00
Certifications: CUL Listed, DLC Approved, Lighting Facts, ROHS, UL Listed
Color Temp: 3000K, 3500K, 4000K, 5000K
Dimmable: Yes
Lamp Life: 50,000 hours
CRI: 80

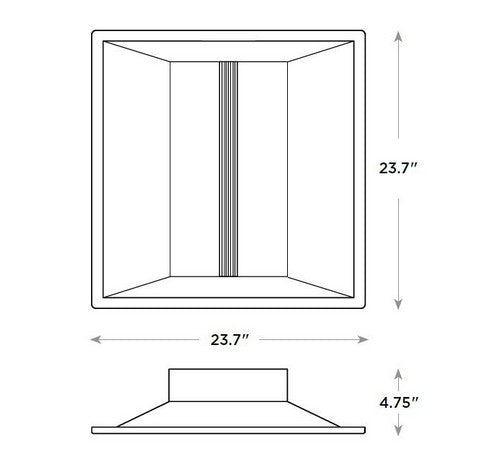

Dimensions: 23.7" x 23.7" x 4.75"
Length: 23.7"
Width: 23.7"
Height: 4.75"
Lumen Output: 3200
Manufacturer: CREE
Product Warranty: 10 Year
Minimum Start Temperature: -20 Deg F
Technology: LED
Voltage: Multivolt 120V-277V
Wattage: 35 Watt
Weight Each: 12.00 lbs
Ballast Start Type: Instant Start
Fixture Type: 2 x 2 Ft - New Fixture
Fixture Length: 2 Feet / 24 Inches
Beam Angle: Normal
