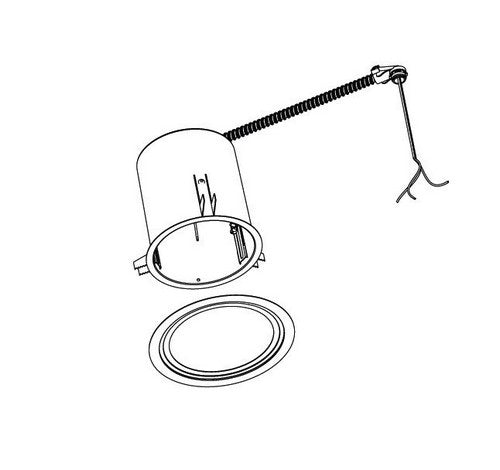

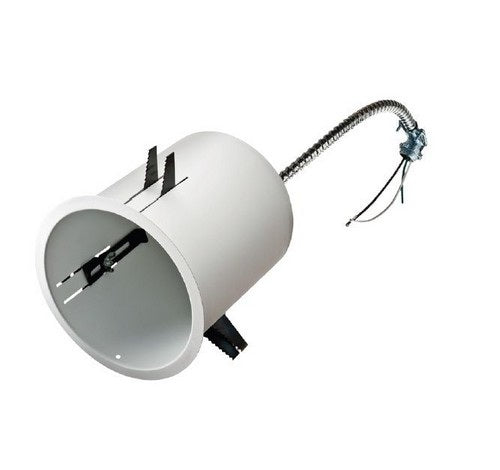

The C6-277V-LSA six inch hard wire conversion kit can be used to convert pan type recessed downlight housings for the LR6 and CR6 with a 277V connector only. This kit will help in making energy code compliance easier. Optional 8" GR8 adapter ring sold separately.
SPECIFICATIONS :
Construction & Materials:
Rugged one-piece housing
Hard-wire connector assembly complete with strain relief
Integral mounting clips adjust to accommodate various apertures
GU24 base for 120 Volt input or 277V Connector for 277 Volt input
Suitable for insulated or non-insulated ceilings
Regulatory & Volunatry Qualifications:
cULus Listed
Suitable for damp locations.
Compatible Housings:
Designed to fit housings with apertures from 6.25” to 6.75”.
GR8 adapter ring accommodates housings with apertures up to 8.5” in diameter.
Installation:
Disconnect Power
Remove existing lamp, trim, and ballast (if required).
Hard wire into existing junction box.
Push assembly through ceiling opening until the mounting clips engage.
Adjust mounting clips as needed.
Install Cree six-inch downlight.
Best Seller Product: No
UPC: 813959012471
Call For Price: No
Certifications: UL Listed
Dimmable: No

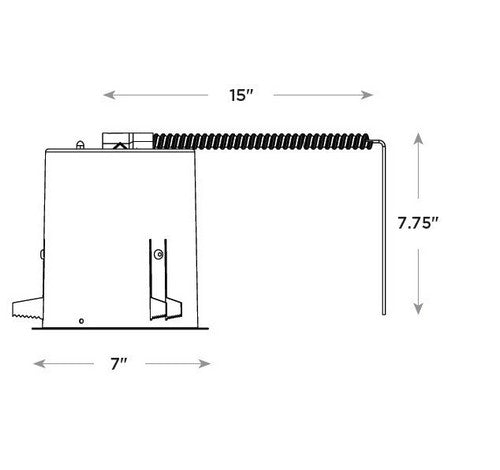

Dimensions: 15.00" x 7.75"
Length: 15.00"
Width: 7.75"
Manufacturer: CREE
Part Number: C6-277V-LSA
Weight Each: 3.00 lbs
Ballast Start Type: Instant Start
Beam Angle: Normal
