CREE LED Lighting C6-120V-LSA 6" Hard Wire Recessed Pan Conversion Kit for LR6 CR6 Series LED Downlight 120V GU24

2 sold in last 8 hours
C6-120V-LSA-483
$32.78
$32.78
customers are viewing this product

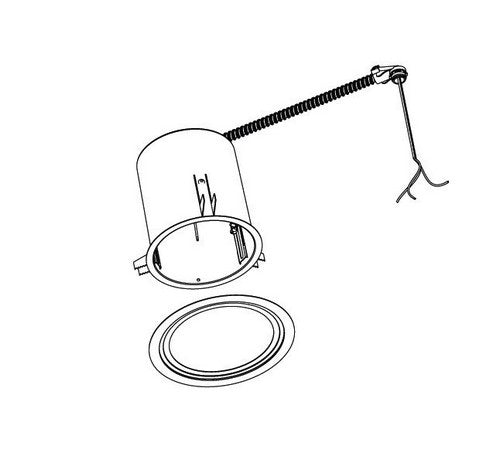

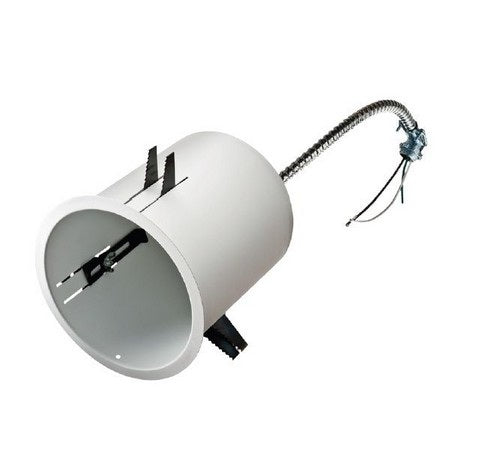

The C6-120V-LSA six inch hard wire conversion kit can be used to convert pan type recessed downlight housings for the LR6 and CR6 with a 120V connector and GU24 base only. This kit will help in making energy code compliance easier. Optional 8 inch GR8 adapter ring sold separately.

SPECIFICATIONS :

Construction & Materials:
Rugged one-piece housing
Hard-wire connector assembly complete with strain relief
Integral mounting clips adjust to accommodate various apertures
GU24 base for 120 Volt input or 277V Connector for 277 Volt input
Suitable for insulated or non-insulated ceilings

Regulatory & Voluntary Qualifications:
cULus Listed
Suitable for damp locations.

Compatible Housings:
Designed to fit housings with apertures from 6.25” to 6.75”.
GR8 adapter ring accommodates housings with apertures up to 8.5” in diameter.

Installation:
Disconnect Power
Remove existing lamp, trim, and ballast (if required).
Hard wire into existing junction box.
Push assembly through ceiling opening until the mounting clips engage.
Adjust mounting clips as needed.
Install Cree six-inch downlight.

Best Seller Product: No
UPC: 810048024483
Call For Price: No
Certifications: UL Listed
Dimmable: No

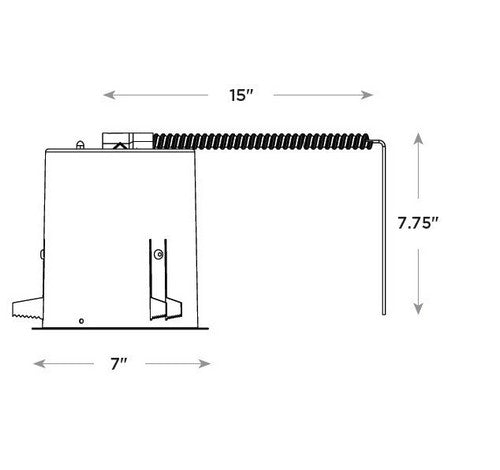

Dimensions: 15.00" x 7.75"
Length: 15.00"
Width: 7.75"
Manufacturer: CREE
Part Number: C6-120V-LSA
Weight Each: 3.00 lbs
Ballast Start Type: Instant Start
Beam Angle: Normal
