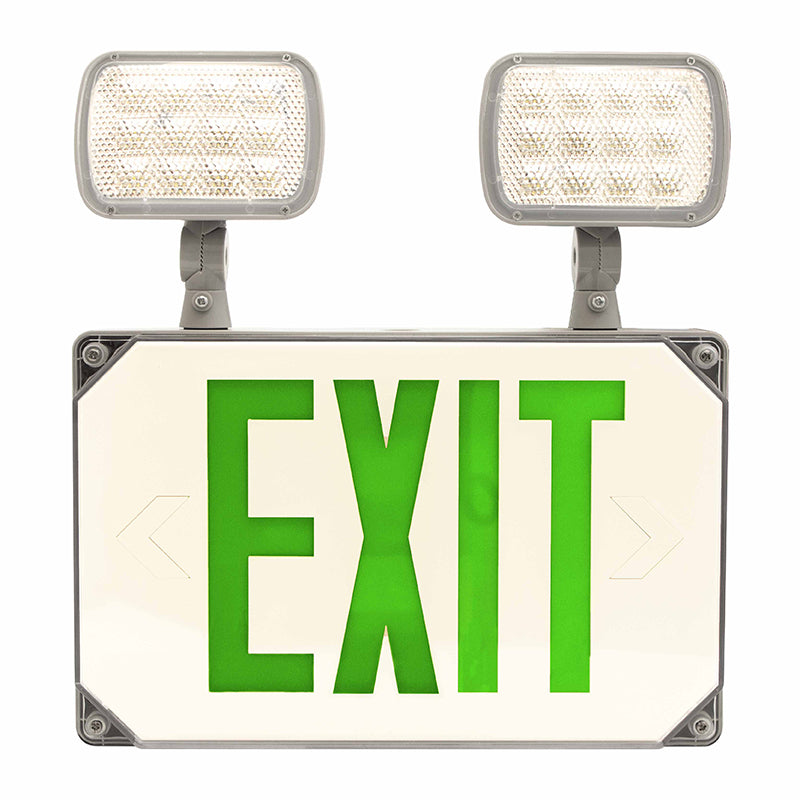

Westgate XT-CLWP-GG-EM

XT-CLWP-GG-EM Product Description

Exit signs shall be provided at every exit door, at the intersection of corridors, at exit stairways or ramps and such other locations and intervals as are necessary to provide the occupants with knowledge of the various means of egress available

Features:

3-Year Warranty
Maximum 24 hours for Full Recharge Time
Injection-molded thermoplastic ABS housing and
polycarbonate cover, UL 94V-0 flame rating

Technical Specifications:

Electrical:
120V/277V AC Dual voltage operation
Light Head Wattage: 2.4W Per head
Sign Wattage: 3.46W
Input Power: 2.90-3.79W
AC charging current: 32mA
Fully Automatic Solid-State, Two Rate Charger Initiates
Battery Charging to Recharge a Discharged Battery in 24
hours
Built-in 3.6V1200mAh Ni-Mh battery for minimum 90
minutes emergency operation


Lighting:
Color Temperature: 6708K
Total Lumens: 8 (AC)/ 272 (DC)
Ultra Bright Green LEDs
Internal Solid-State Transfer Switch Automatically
Connects the Internal Battery to LED Board for
Minimum 90-minute Emergency Illumination
Charge Rate/Power “ON” LED Indicator Light and
Push-to-Test Switch for mandated Code Compliance
Testing


Mechanical:
Injection-molded thermoplastic ABS housing and
polycarbonate cover, UL 94V-0 flame rating
Single or double face (Universal)
Letters 6” height with 3/4” stroke
Operating Temperature: 32º F~104ºF
Maximum 24 hours for full recharge time
Universal J-box mounting pattern
Injection-molded thermoplastic ABS housing and
polycarbonate cover,UL 94V-0 flame rating
Innovative,Easy Installation in Minutes
IP65, Suitable for Wet location
