Westgate WMC4-UDL-MCTP-AZ-DD-P 4" LED Cylinder Lights 120-277V with Photocell, 3000K/4000K/5000K Antique Bronze Finish
WMC4-UDL-MCTP-AZ-DD-P
Westgate WMC4-UDL-MCTP-AZ-DD-P
WMC4-UDL-MCTP-AZ-DD-P Product Description

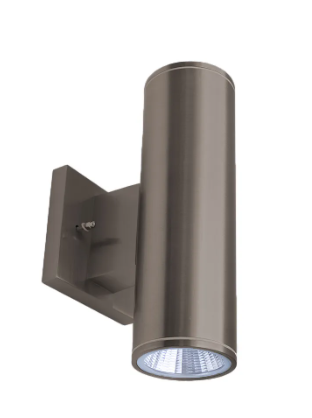

The 4” LED Cylinder Light offers versatile illumination with both up and down lighting capabilities, perfect for enhancing architectural features in commercial and residential applications. Operating on a wide voltage range of 120-277V, this sleek, energyefficient fixture includes a photocell for automatic dusk-to-dawn operation. With durable construction and modern aesthetics, it’s ideal for outdoor facades, entryways, and walkways, providing reliable, energy-saving lighting that adapts to changing daylight conditions.
Features:
• LED: COB Technology with Prismatic Reflector and Frosted Lens
• Housing: Die-Cast Aluminum
• Outdoor Wall Cylinders
• 7-Year Warranty
• MCTP: Multi Color Temperature & Multi Power/ Wattage (Selectable Switch Under the Mounting Arm)
Specifications:
Electrical:
• Voltage: 120-277VAC 60Hz
• Wattage: 2x12W/2x16W/2x20W
• Power Factor: >0.90
• Efficacy: 80LM/W
Mechanical:
• Outdoor Wall Cylinders
• Housing: Die-Cast Aluminum
• DC Button Photocell with ON/OFF Switch Included
• Uplight/Downlight with ON/OFF Switch
• Finish: Bronze, Brushed Nickel, White, Black, Antique Bronze
• 7-year Warranty
• IP65, Providing a Reliable Weather-Tight Seal
Lighting:
• MCTP: Multi Color Temperature & Multi Power/ Wattage (Selectable Switch Under the Mounting Arm)
• Dimming: (Dual Function) Triac Dimmable at 120V &
• 0-10V Dimming at 120-277V With InstalledEmergency Back up Battery
• Lumens Range: 1600LM
• LED: COB Technology With Prismatic Reflector and Frosted Lens
• Light Directions: UP and DOWN
• Color Temperatures: 3000K/4000K/5000K
• Color Rendering Index: CRI ≥ 80
• Beam Angle: 40º for Each Side
• Rated Life: 70,000 Hrs
Applications:
• Ideal for general site lighting, walkways and stairways, alleys, loading docks, doorway, pathway and parking areas
