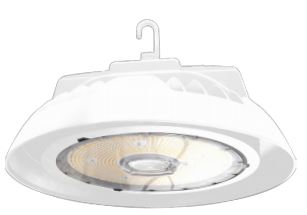

Westgate UHX-230W-MCTP-WH

UHX-230W-MCTP-WH Product Description

In a Aluminium Shell designed for heat dissipation, UHX is IP65
water resistant rated and ideal for general site lighting, alleys,
loading docks, doorways, pathways, parking areas, warehouses and
storage buildings.

SPECIFICATIONS:

ELECTRICAL SPECIFICATIONS:
• Input Wattage: 100W/ 150W/ 200W/ 230W
• Input Voltage: 120-277VAC 50/60Hz
• Power Factor: >0.9
• THD: <20%
• Efficacy: 130 LPW

Mechanical:
• ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
• Optical Lens: PC Materials High Light Transmittance,
Anti-UV, Fire-Resistant
• LED: LUMILEDS 2835
• LED PCB Board: High Conductive, Waterproof, Aging
Resistance, salt mist Resistance, Ensure the Safety
and Long Lifespan
• Operating temperature: -40°F to 122°F
• IP rating: IP65, Wet Locations
• Lifespan: 50,000 Hrs

Lighting:
• Dimming: 0~10V
• Multi Color Temperature & Multi Power (Selectable
Switch Located On The Driver Housing)
• Total Lumens: 13000/ 19500/ 26000/ 29900 LM
• Color Temperatures: 3000K/ 4000K/ 5000K/ 5700K
• Color Rendering index: > 80
• Beam Angle: 90°
• Lifespan: 50,000 Hrs

WARRANTY: 7 years

About Westgate:

Westgate's full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
