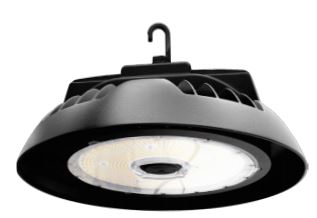

Westgate UHX-150W-MCTP

UHX-150W-MCTP Product Description

In a Aluminium Shell designed for heat dissipation, UHX is IP65
water resistant rated and ideal for general site lighting, alleys,
loading docks, doorways, pathways, parking areas, warehouses and
storage buildings.

SPECIFICATIONS:

ELECTRICAL SPECIFICATIONS:
• Input Wattage: 50W/ 80W/ 100W/ 150W
• Input Voltage: 120-277V 50/60Hz
• Power Factor: >0.9
• THD: <20%
• Efficacy: 125 LPW

Mechanical:
• ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
• Optical Lens: PC Materials High Light Transmittance,
Anti-UV, Fire-Resistant
• LED: LUMILEDS 2835
• LED PCB Board: High Conductive, Waterproof, Aging
Resistance, salt mist Resistance, Ensure the Safety
and Long Lifespan
• Operating temperature: -40°F to 122°F
• IP rating: IP65, Wet Locations
• 5-Year Warranty

Lighting:
• Dimming: 0~10V
• Total Lumens: 6250/ 10000/ 12500/ 18750 LM
• Multi Color Temperature & Multi Power (Selectable
Switch Located On The Driver Housing)
• Color Temperatures: 3000K/ 4000K/ 5000K/5700K
• Color Rendering index: > 80
• Beam Angle: 90°
• Lifespan: 50,000 Hrs

WARRANTY: 7 years
