Westgate T8-EZX-MCT-GS-2FT-8W-F

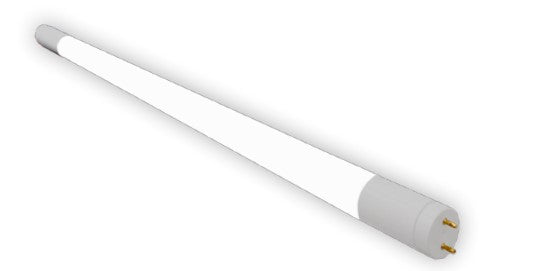

T8-EZX-MCT-GS-2FT-8W-F Product Description

T8 Tube switches from fluorescent tubes to LED,giving more cost efficiency by providing the same amount of lumen output with less energy consumption. The LED tube offers a soft and bright light distribution.

Features:

Type A + B (Dual UL)
Type A: With Existing Ballast - UL No. E366061
5-Year Warranty
Type B: Ballast Override (AC Direct), Connect One
End or Both Ends (Dual Function) - UL No. E342884

Technical Specifications

Electrical:
Voltage: 120-277V; 50/60Hz AC
Power Factor: >0.90
THD: <20%
Wattage: 8W
Efficacy: 125 LPW

Lighting:
MCT: The Switch Is On The End Of The Lamp
Dimming: Non Dimmable
Total Lumens: 1200LM
Color Temperatures: 3500K/4000K/5000K
Color Rendering Index: CRI ≥ 80
Beam Angle: 120°
Rated life: 50,000 Hrs
Compatible with fluorescent Emergency Ballast
Compatible with fluorescent Dimming Ballast
Compatible with 90% of electronic ballasts (see the list)

Mechanical:
Base Type: G13
Better Transparency and Thermal Conductivity than
Plastic
Lens: With Shatter-Proof Film
Frosted Lens
Ambient Operating Temperature: -13ºF to 113ºF
IP Rating: IP20 (Indoor)

Applications:
Direct Fit 4 T8 LED tubes do not burn out easily and
provide bright and even lighting to schools, office
spaces, retail stores and storage rooms.
