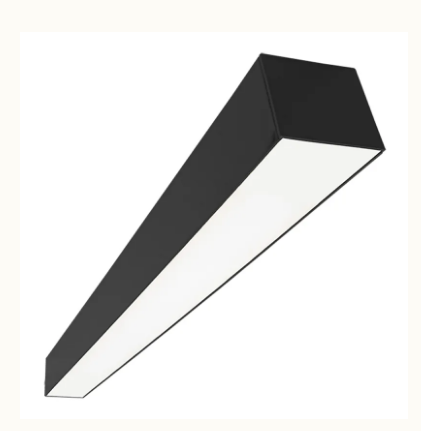

Westgate SCXT-8FT-40-80W-MCTP-D-FL-BK
SCXT-8FT-40-80W-MCTP-D-FL-BK Product Description
Linear Lighting can customize your desired length, look, and color temperature to either be suspended, surface mounted, or recessed to suit your needs. Ideal for Storage rooms, Offices Conference rooms, Retail Reception areas, Hallways Education facilities, hotels, and restaurants
Specifications:
SKU: SCXT-8FT-40-80W-MCTP-D-FL-BK
Brand: Westgate Manufacture
Voltage: 120-277VAC 50/60Hz
Wattage: 40W/60W/80W
Power Factor: >0.95
Total Harmonic Distortion: ≤ 20 %
Efficacy: 110 LM/W
Low Profile Modern Design
Aluminum Housing With Matte White Finish
Custom Colors Available
Lens Snaps into Housing
Mounting Options: Surface, Suspended, Recessed
IP Rating: IP54
Each Fixture Comes With a 6-1/2” Pre-Installed Cable With Male RJ11 Connector Plugs Right Into The Driver
External Driver needed. Calculate the total wattage and pick adequate driver(s) as power supply. each driver has 4 ports for 4 separate fixtures.
Do not exceed the maximum wattage of the driver
Order The SCXT-TGRID-SP1 To Install The Driver On Top Of a T-Bar. Or Install The Driver On a Joist
Two T-Bar clips attached on top of the fixture ready to install on the grid
Can be linked (W/ endcap on, not seamless) coupling bracket incl.
Operating Temperature: -13°F~104°F
Dimmable: 0~10V Dimming
Total Lumens: 4400LM/6600LM/8800
About Westgate:
Westgate's full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.
