Westgate Lighting UHXE-165-220W-MCTP4-SR

UHXE-165-220W-MCTP4-SR Product Description

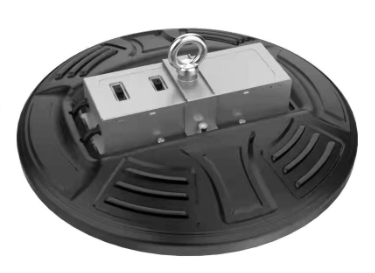

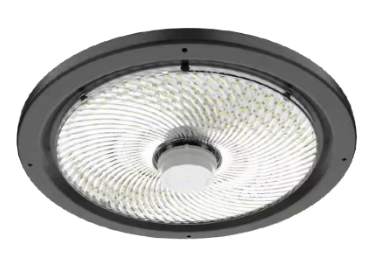

In a aluminum shell designed for heat dissipation, UHXE is IP65 water resistant rated and ideal for general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses and storage buildings.

SPECIFICATIONS:

:: Input Wattage: 165W/190W/220W
:: Input Voltage: 120-277V 50/60Hz
:: Power Factor: >0.9
:: THD: <20%
:: Efficacy: 140 LPW
:: Aluminum Heat Sink, Outdoor Powder Coating Finish
:: Nano Coating Heat Dissipation Technology
:: Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
:: Twist-Lock Zhaga Socket Pre-Installed. See Motion Sensor Accessories
:: 3.3' SJTW 18,3 AWG Power Cable
:: 3.3' SJTW Dimming Cable
:: LED PCB Board: High Conductive, Waterproof, Aging Resistance, Salt Mist Resistance, Ensure the Safety and Long Lifespan
:: Operating temperature: -40°F to 122°F
:: IP Rating: IP65, Wet Locations
:: Dimming: 0~10V
:: Total Lumens: 30800LM
:: Multi Color Temperature & Multi Power (Selectable Switch Located on the Driver Housing)
:: Color Temperatures: 3000K/3500K/4000K/5000K
:: Color Rendering Index: >80
:: Beam Angle: 90°
:: Lifespan: 50,000 Hrs
