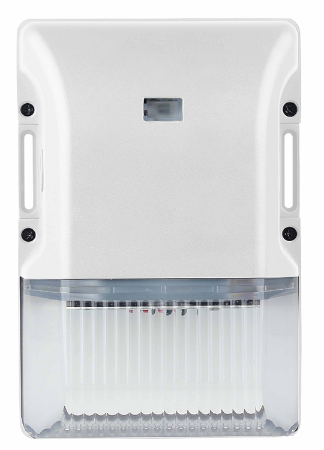

Westgate Lighting LESW-15-30W-MCTP-P-WH

LESW-15-30W-MCTP-P-WH Product Description

LED Non-Cutoff Wall Pack with Photocell is ideal for general site lighting, loading docks, doorway, pathway and parking areas.

SPECIFICATIONS:

Electrical:
• Voltage: 120-277V AC 60Hz
• Wattage: 15W / 20W / 30W
• Power Factor: >0.90
• Efficacy: 135/ 147/ 137LPW
• Includes Pre-wired Photo Electric Control (Dusk to Dawn
Photocell), 120 Volt, Removable
• Photocell Response Time: Maximum 3 Seconds

Lighting:
• Dimming: 0-10V Dimming
• LED Type/Brand: 2835LUMILEDS
• Front: Polycarbonate Lens and Housing
• Multi-Power (The switch is inside the fixture)
• Total Lumens: 4050LM/ 4410LM/ 4110LM
• Color Temperatures: 3000K/ 4000K/ 5000K
• Color Rendering Index: CRI ≥ 70
• Beam Angle: 100°
• Rated life: 70,000 Hrs

Mechanical:
• Back plate: Die-cast aluminum
• Polycarbonate Housing & Lens
• Non-Cutoff Optics Ideal for Maximum Light Distribution
• Operating Temperature: -4ºF to +113ºF
• Wet Location
• 7-Year Warranty
• IP65

APPLICATIONS:
• Entrance lighting,courtyard lighting;
• Industrial lighting,Outdoor landscape lighting;
• Building,The hotel;
• Wall lighting area and so on
