Westgate LF3-HL-230W-50K-TR

LF3-HL-230W-50K-TR Product Description

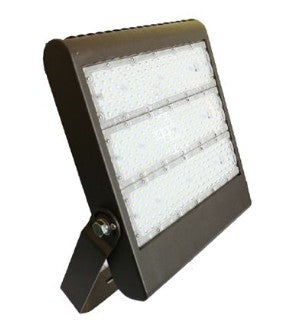

230 Watt LED High Lumen LF3 Flood/Area Light Fixture with "U" Bracket

SPECIFICATIONS:

ELECTRICAL SPECIFICATIONS:
• Voltage: 120~277V
• Wattage: 230W
• Efficacy: 130LM/W ~ 134LM/W
• Power factor: >0.90
• THD: <20%

LIGHTING SPECIFICATIONS:
• Dimmable: 0~10V Dimming
• Lens: TYPE III TIR optic Lens
• LED: Philips Lumileds Luxeon 3030 High flux LED
• Solid state lighting technology for long life, no maintenance
needed and high-efficiency
• Cord type: 6’ SJTW 18/3 AWG cable
• Total lumens: 31000LM/30100LM
• Color temperature: 5000K/4000K/3000k
• Color rendering index: 82~84
• Beam Angle: 120°x90°

HOUSING SPECIFICATIONS:
• Die-cast Aluminum housing with powder coat finish
(Dark Bronze)
• Operating temperature: -40°F to 104°F
• Lifespan: 70,000 hr.
• IP Rating: IP65
• Effective projected areas (EPA’s) are:
Front = 0.38 square feet
Side = 0.40 square feet
Face = 1.45 square feet

WARRANTY: 7 years
