Westgate DLS10-MCT

DLS10-MCT Product Description

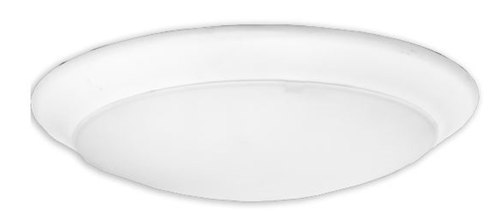

25W 10 Inch LED Downlight Disc Color Tuneable

SPECIFICATIONS:

ELECTRICAL SPECIFICATIONS:
• Voltage: 120V AC
• Power Factor: >0.90
• Wattage: 25W
• Efficacy: 60 LPW

LIGHTING SPECIFICATIONS:
• Lens: White Translucent Acrylic
• LED: Unique DOB (Driver On Board) LED Board
Enclosed in Clear PC Cover for Better Wet Location
Performance
• Dimming: TRIAC Dimming (Using Standard TRIAC
• LED Dimmers)
• Total Lumens: 1500LM
• Color Temperatures: 3000K/ 4000K/ 5000K
• Multi CCT (Selectable Switch on LED Board Under
the Lens)
• Color Rendering Index: CRI ≥ 90

Mechanical:
• White Finish
• Die-cast Aluminum. Powder-Coated
• Gasket: Closed Cell Neoprene Foam Gasket
• Fits on 4”Octagonal (4O) or 3”Octagonal (3O) Electrical
Boxes
• Recessed Mounting Kit Included for Recessed/Retrofit
Installation
• Maximum Ambient Temperature: 104°F
• Rated life: 50,000 hrs

WARRANTY: 5 years

APPLICATIONS:
Disk lights have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets,storage areas, attics, corridors, or general lighting solutions for residential and commercial applications

About Westgate:

Westgate's full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
