Westgate CMC3-2TONE-MCTP-DD-BKBN
CMC3-2TONE-MCTP-DD-BKBN Product Description

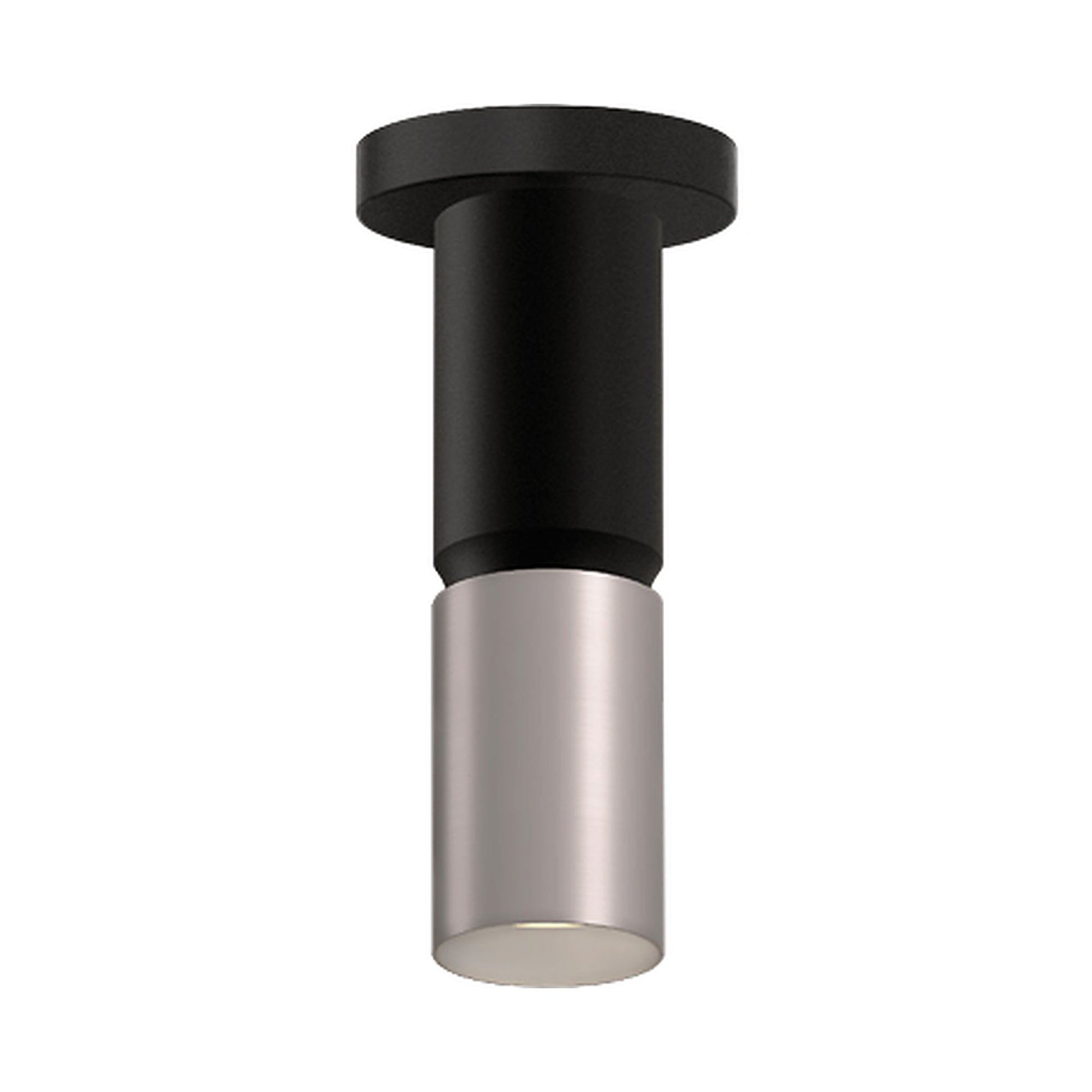

The CMC3-2TONE-MCTP-DD Series delivers refined accent and ambient illumination for architectural interior spaces. Its 2-tone cylinder design pairs a clean upper body with a contrasting lower accent finish, making it equally at home in retail stores, hospitality venues, restaurants, offices, lobbies, galleries, museums, and corridors. Selectable wattage and CCT allow a single fixture to adapt to multiple design requirements on the jobsite, while dual dimming capability — TRIAC at 120V and 0-10V at 120-277V — supports compatibility with virtually any dimming control system. The COB LED source and clear glass diffuser produce a focused 45-degree beam with smooth, refined output suited for accent and general lighting. Surface mount is standard; optional suspension cable and canopy sets are available for pendant mounting in 8FT, 12FT, and 20FT lengths. Available in White/Brushed Nickel, White/Gold, Black/Brushed Nickel, and Black/Gold finish combinations.
SPECIFICATIONS:
Brand: Westgate
SKU: CMC3-2TONE-MCTP-DD-BKBN
UPC: 840378347334
Finish: Black and Brushed Nickel
Wattage: 9W / 12W / 15W (Selectable)
Input Voltage: 120-277VAC, 50/60Hz
Power Factor: >0.95
Dimming: TRIAC at 120V / 0-10V at 120-277V
Operating Temperature: -4-degree F to 158-degree F
Lumen Output: 720 / 960 / 1,200 LM (Max 1,200 LM)
Efficacy: 80 LM/W
CCT Selectable: 3000K / 4000K / 5000K
CRI: 80
Beam Angle: 45-degree
LED Source: COB
Fixture Body: 3-1/8-inch Dia. x 10-inch H
Surface Mount Overall: 5-1/8-inch Dia. x 11-inch H
Pendant Canopy: 5-7/8-inch Dia. x 1-3/4-inch H
About Westgate:
Westgate's full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.
