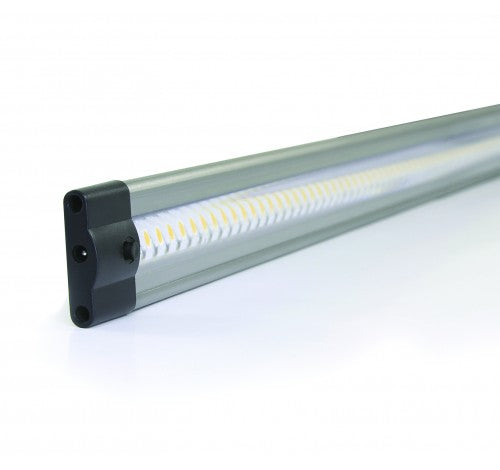

Westgate 8W 32" LED Linear Undercabinet Lights 24V DC



Wattage: 8W
Working voltage: 24V DC - (driver required)
Highly efficient SMD 3528 chip technology
Integral switch, push on - push off
Electronic or hard wired magnetic drivers available
Mounting hardware and coupler included
Polycarbonate end caps with universal feed thru mono-pin receptacle
Suitable for interior applications only
Ambient temperature rating: –20°C (4°F) to +40°C (104°F)
Max run 48w 190“
Dimmable using magnetic low voltage transformer:
1. Hardwire application will require “magnetic low voltage
dimmable driver DC” For Westgate UCM Series-use compatible “magnetic low voltage wall dimmer”
2. The touch dimmer or the “in line dimmer” can only be used with the inline transformer
Ultra-low profile - only 1/4” deep
Extruded aluminum housing with white powder coat finish
Smooth white acrylic lens (.125” thickness). No lamp imaging
Warranty: 5 Years


      8W - 590LM Lumen - 3000k - UC32WW
      8W - 640LM Lumen - 6000k - UC32W


          Very low profile, easy to install, cool to the touch
          High brightness with excellent color rendition and years of maintenance-free operation
          Wide selection of mounting hardware, accessories and LED drivers

          Please email us with the products you need and the desired quantity at buyriteelectric@gmail.com
