Westgate LRT-HL-2X4-50W-40K-D

LRT-HL-2X4-50W-40K-D Product Description

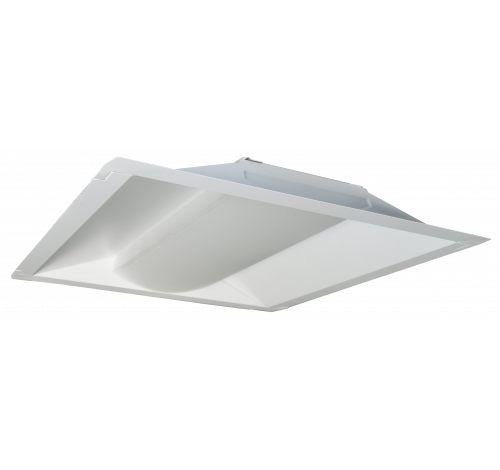

50W White Led Door Frame Troffer Retrofits, 120~277V AC

SPECIFICATIONS:

Wattage: 50W
Voltage: 100~277V AC 50/60Hz
Power factor: >0.90
Efficacy: 130LM/W
THD: >20%
Dimming: 0~10V dimmable
Lens: frosted diffuse PC lens
Color rendering index: >80
Beam Angle: 140°
Housing: Steel base with white powder coating
Steel Thickness: 24 Gauge
Retrofit baskets included
Operating temperature: -4°F ~ 131°F
Life span: 50,000hrs
IP Rating: IP20

Warranty: 5 years

APPLICATIONS:
Replaces prismatic lens on standard fluorescent troffer fixtures to create a modern & efficient office environment
Replaces door frame & lens of traditional fluorescent flat lens troffer fixtures
No need to remove old fixture; simply remove and discard the door frame of the existing fixture; place 2 adapter brackets (included) in the existing fixture; hinge this retrofit unit to the fixture; disconnect the ballast; connect the wires to the retrofit unit and close
