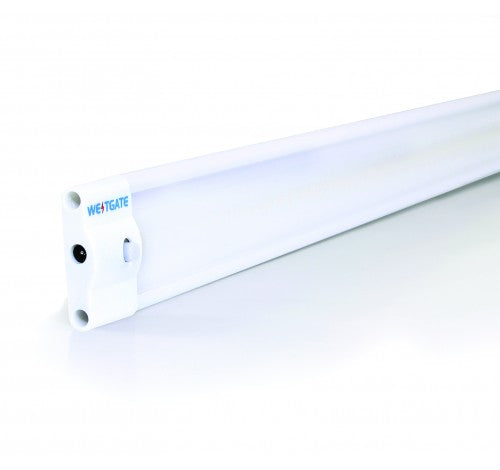

Westgate 11W 40" Led Linear Undercabinet Lights 12V DC

UCW40WW
$92.74
-
+
$92.74

SPECIFICATIONS:

Wattage: 11W
Working voltage: 12V DC - (driver required)
Highly efficient SMD 3528 chip technology
Integral switch, push on - push off
Plug in electronic or hard wired magnetic drivers available
Mounting hardware and coupler included
Polycarbonate end caps with universal feed thru mono-pin receptacle
Suitable for interior applications only
Ambient temperature rating: –20°C (4°F) to +40°C (104°F)
Max continuous run: 24w (5”)
Dimmable using magnetic low voltage transformer:
1. Hardwire application will require “magnetic low voltage
dimmable driver DC” For Westgate UCM Series-use compatible “magnetic low voltage wall dimmer”
2. The touch dimmer or the “in line dimmer” can only be used with the inline transformer
Ultra-low profile—only 1/4” deep
Extruded aluminum housing with white powder coat finish
Smooth white acrylic lens (.125” thickness). No lamp imaging
Warranty: 5 Years

    OPTIONS:

    11W - 820LM Lumen - 3000k - UCW40WW
    11W - 880LM Lumen - 6000k - UCW40W

      APPLICATIONS:

      Very low profile, easy to install, cool to the touch
      High brightness with excellent color rendition and years of maintenance-free operation
      Wide selection of mounting hardware, accessories and LED drivers
      Please email us with the products you need and the desired quantity at buyriteelectric@gmail.com
