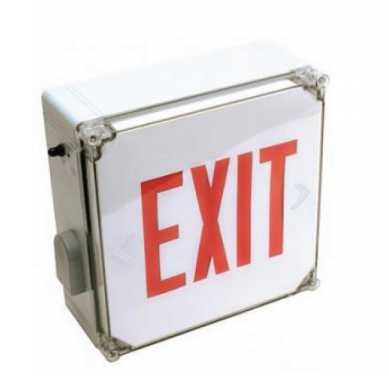

Utopia Lighting WEX Wet Location Exit/emergency Combo with Battery Back Up

Wet Location Exit/emergency Combo

FEATURES:

LED wet location exit combo with battery backup.
Listed NEMA 4X and high-impact thermoplastic housing.
ABS, corrosion-resistant, polycarbonate UV-stabilized enclosure.
Exit letters 6” height with 3/4” stroke and knockout directional chevron.
Easily removable snap-out knockouts and chevron directional arrows.
Two fully adjustable glare-free round shape light heads for light.
Fully gasket enclosure housing and non-hazardous environments.
90+ minute emergency operation
Available in single face. Polycarbonate face plate.

SPECIFICATIONS:

MOUNTING

Surface wall mount.
Side and top conduit knockouts on back plate allow for wall mounting directly to standard J-Box.

LAMPS

LEDs mounted on printed circuit board (for Exit Sign)
2 X 6V 5.4 watts DC T5 wedge base lamps for emergency mode.

ELECTRICAL

120V/277V dual voltage operation standard.
Charge rate and power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from deep discharge.

BATTERY

Ni-Cad battery maintenance-free, rechargeable battery (6V 4.5Ah) on emergency (EM) units.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 90 minute emergency illumination
LVD (Low Voltage Disconnection) prevents battery from deep discharge.

LISTING

5 years limited warranty on materials and all electronics.
UL listed for wet locations & meets UL924, National Electrical Code, ANSI /NFPA 70 and the Life Safety Code, ANSI/NFPA 101.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
