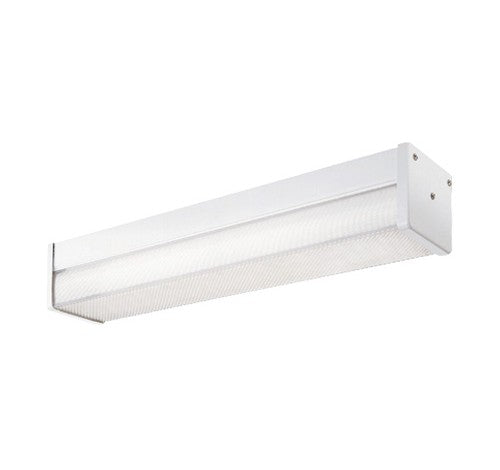

Wall/Ceiling mounted luminaire, and optional with integral ultrasonic motion sensor provides luminaire applications. Ideal for use in wall, corridors, stairwells, closets, laundry, bathrooms, dormitories, hallways and general work areas
FEATURES:
High-gloss white on die formed 20 gauge cold rolled steel housing and one-piece metal ends. Come as white finish. (Std.)
Clear prismatic acrylic diffuser; optional smooth white acrylic diffuser.
Optional One piece slide-on ends.
Optional integral ultrasonic occupancy sensor to sense motion within a space and automatically turn lights on.
Wall or ceiling mounted.
SPECIFICATIONS:
LED
Color Temperature: 2700/3000/3500/4000/5000 (K).
LED Module: High efficiency up to 140 LPW.
Calculated L70: 122,000 hours
Reported L70: >54,000 hours
Poke in wire connectors.Poke in wire connectors.
Color variation within 3-step MacAdam ellipse.
ELECTRICAL
High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
Dimming Control: 0-10V 10%~100% (std.), 1%~100% (optional).
Optional step dimming for bi-level application.
Power Factor: +0.9
Efficiency: +85%
Ambient Operating Temperature: -22°F (-30°C) ~ 122°F (50°C).
Constant Current, Class 2.
ELCU-200
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits
LISTING
UL/CUL listed and labeled.
Listed to UL 1598 and UL 8750.
Suitable for damp locations.
CEC Compliant EM (please contact for more information).
Made in USA.
5 years limited warranty.
7 or 10 years limited warranty. (optional)
