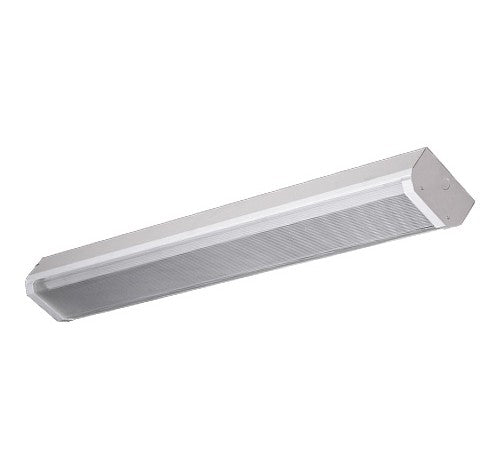

Utopia Lighting VR6 4’ LED Linear Wall Bracket

2 sold in last 8 hours
VR6-4-36LED/27k-UNV-GR
$166.63
$166.63
customers are viewing this product
The VR6 series is a premium grade architectural linear luminaire that can be wall or ceiling mounted. It is designed to provide the extra level of protection and security required in high occupancy public areas.

FEATURES:

Heavy 20 gauge steel material body. Includes knockouts for surface conduit and tandem mounting.
UV stabilized polycarbonate lens available in frosted.
Available with occupancy sensors(VR6M).
Precision die formed 20 gauge full reflector that also acts as a wire cover with 92% reflectivity.

SPECIFICATIONS:

MOUNTING

Surface wall, ceiling and pendant mount.
Can be continuous row mounted as needed.

LED

High quality array LEDs.
LM80
Color Temperature: 2700/3000/3500/4000/5000 (K)
Color Rendering Index: > 82.8
Calculated L70: 122,000 hours
Reported L70: >54,000 hours

ELECTRICAL

High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
Features included over voltage protection, surge, short circuit protection and over load protection.
Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
Philips Xitanium: 0-10V Dim to 1%(PH).
Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
Generic : 0-10V 10% dim. (GR)
Operating temperature: -4°F (-20°C) ~ 122°F (50°C).

ELCU-200

Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits.

LISTING

UL / CUL listed.
Listed to UL 1598 and UL 8750.
Suitable for damp location.
CEC Compliant EM (please contact for more information).
ARRA compliant. (optional)
7 or 10 years limited warranty. (optional)
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
Utopia Lighting VR6 4’ LED Linear Wall Bracket
36LED/3985 Lumens / Generic 0-10V 10% d'm (Std.) / Warm White (2700K) - $166.63
