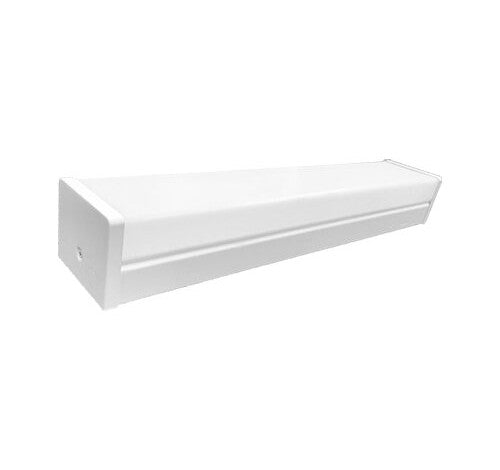

Utopia Lighting ULW4-2G LED Linear Wall Bracket

Wall or ceiling light. Acrylic diffuser with metal end caps. Ideal for use in public areas, corridors, locker rooms, laundry, bathrooms, stairwells and work areas

FEATURES:

White finish as standard. (other finish available)
Acrylic ribbed white lens.
Screw-in ends.
Rocker switch flat knockout comes as standard.

SPECIFICATIONS:

MOUNTING

Wall or ceiling mounted.

LED

High quality long-life LEDs.
LM80
Color Temperature: 2700/3000/3500/4000/5000 (K)
Color Rendering Index: > 82.8
Calculated L70: 122,000 hours
Reported L70: >54,000 hours

ELECTRICAL

High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
Features included over voltage protection, surge, short circuit protection and over load protection.
Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
0-10V dimmable driver as standard.
0-10VDC dimming 1%~100%.
Operating temperature: -4°F (-20°C) ~ 122°F (50°C).

ELCU-200
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits.

LISTING

UL listed.
Listed to UL 1598 and UL 8750.
Suitable for damp locations.
CEC Compliant EM (please contact for more information)
ADA compliant. (less than 4” off wall)
ARRA compliant. (optional)
7 or 10 years limited warranty. (optional)

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
