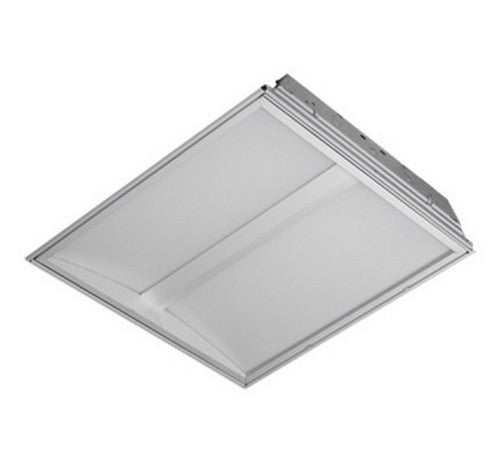

Utopia Lighting TRV-24 2x4 LED TR Series Troffer

2 sold in last 8 hours

TRV-24-44LED-27K-UNV

$326.30
$326.30
customers are viewing this product
Specification troffer design with hi-transmission acrylic, high performance static luminaires provide e xcellent visual control and subtle soft indirect illumination. It is high efficiency, great performance and value make it an ideal choice for commercial and institutional environments

FEATURES:

Die formed, cold-rolled, 20-gauge steel construction provides durability and strength.
Finish in high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
High reflectance white reflector distributes light through both optical elements.
Unique door frame design delivers a premium extruded appearance.
Door latches and hinges from either side as standard.

SPECIFICATIONS:

SHIELDING

Two slope panels of the units are high transmission acrylic that provide a low-brightness glow.

MOUNTING

Recessed mounted in expose T-bar ceilings, Internal T-bar safety clips.
Field installed flange kits are available.

LED

High quality array LEDs.
LM80
Color Temperature: 2700/3000/3500/4000/5000 (K)
Color Rendering Index: > 82.8
Calculated L70: 122,000 hours
Reported L70: >54,000 hours

ELECTRICAL

High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
Philips Xitanium: 0-10V Dim to 1%(PH).
Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
Generic : 0-10V 10% dim. (GR)
Power Factor: +0.9
Efficiency: +85%
Ambient Operating Temperature: -22°F (-20°C) ~ 122°F (50°C).
Constant Current, Class 2
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits.

LISTING

UL/CUL listed and labeled.
Listed to UL 1598 and UL 8750.
Suitable for damp locations.
CEC Compliant EM (please contact for more information).
ARRA compliant.
Made in USA.
7 or 10 years limited warranty. (optional)
