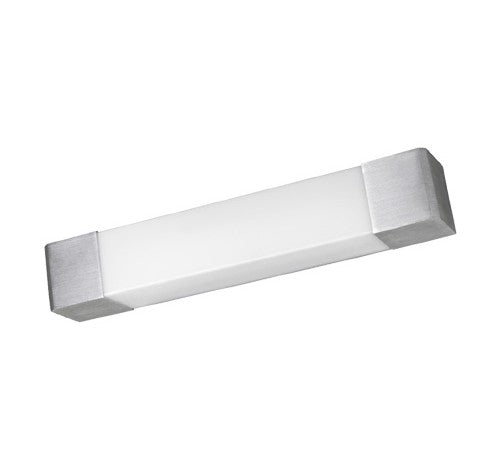

Wall or ceiling corridor light. Acrylic diffuser with metal end caps. Ideal for use in public areas, corridors, locker rooms, laundry, bathrooms and work areas.
FEATURES:
Aluminum end caps and an aluminum body.
Extruded matte white acrylic diffuser.
Natural aluminum finish as standard (AL)
SPECIFICATIONS:
MOUNTING
Surface wall mounting.
Horizontal or vertical mount.
Provided a universal mounting back for a standard 3” plaster ring or J-box.
LED
Color Temperature: 2700/3000/3500/4000/5000 (K).
LED Module: High efficiency up to 140 LPW.
Service life: Greater than 60,000 hours(L70) minimizing maintenance frequency.
Poke in wire connectors.
Color variation within 3-step MacAdam ellipse.
ELECTRICAL
High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
Dimming Control: 0-10V 10%~100%.
Power Factor: +0.9
Efficiency: +85%
Ambient Operating Temperature: -22°F (-30°C) ~ 122°F (50°C).
Constant Current, Class 2
ADA COMPLIANT:
ADA requires all fixtures below 68” to have a maximum projection of 4”
LISTING
UL listed and labeled.
Listed to UL 1598 and UL 8750.
Suitable for damp locations.
ADA compliant.
ARRA compliant (optional).
5 years limited warranty.
7 or 10 years limited warranty. (optional)
