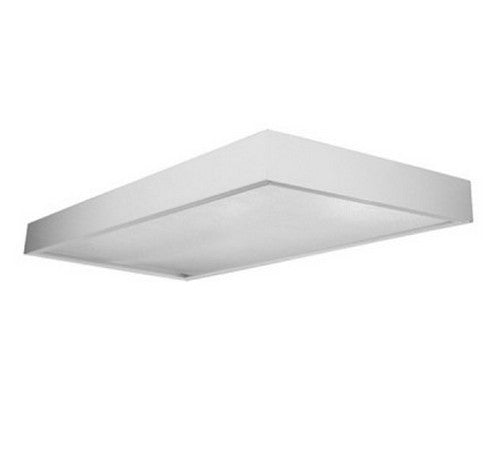

Utopia Lighting SM24 2x4 LED Surface Mount Troffer
2
sold in last
8
hours
SM-24-36LED/27-UNV-AB-GR
$211.63
customers are viewing this product
PRODUCT DESCRIPTION
Specification grade fixture designed for high performance and maximum efficiency. It can be installed in rows either surface or stem mounted to provide excellent, energy efficient general lighting in commercial, retail and institutional environments.
FEATURES:
Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
100% acrylic, clear prismatic pattern #12 lens with nominal 0.100” thickness. Steel door frame allows easy lens replacement without tool.
Unique door frame design delivers a premium extrude appearance.
Door latches and hinges from either side.
Standard door is without gasket flush steel with sturdy tee hinges and opposing, rotary action cam latches. Also available fully gasket door.
Smooth edges for easy handing.
Finish is high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
SPECIFICATIONS:
LED
High quality array LEDs.
LM80
Color Temperature: 2700/3000/3500/4000/5000 (K)
Color Rendering Index: > 80 Ra.
Calculated L70: 122,000 hours
Reported L70: >54,000 hours
ELECTRICAL
High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
Features included over voltage protection, surge, short circuit protection and over load protection.
Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
Philips Xitanium: 0-10V Dim to 1%(PH).
Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
Generic : 0-10V 10% dim. (GR)
Minimum starting temperature: -4°F (-20°C) ~ 122°F (50°C).
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits.
LISTING
UL/CUL listed and labeled.
Listed to UL 1598 and UL 8750.
Suitable for dry and damp locations.
CEC Compliant EM (please contact for more information)
ARRA compliant (optional).
7 or 10 years limited warranty. (optional)
5 years limited warranty.
FEATURES:
Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
100% acrylic, clear prismatic pattern #12 lens with nominal 0.100” thickness. Steel door frame allows easy lens replacement without tool.
Unique door frame design delivers a premium extrude appearance.
Door latches and hinges from either side.
Standard door is without gasket flush steel with sturdy tee hinges and opposing, rotary action cam latches. Also available fully gasket door.
Smooth edges for easy handing.
Finish is high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
SPECIFICATIONS:
LED
High quality array LEDs.
LM80
Color Temperature: 2700/3000/3500/4000/5000 (K)
Color Rendering Index: > 80 Ra.
Calculated L70: 122,000 hours
Reported L70: >54,000 hours
ELECTRICAL
High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
Features included over voltage protection, surge, short circuit protection and over load protection.
Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
Philips Xitanium: 0-10V Dim to 1%(PH).
Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
Generic : 0-10V 10% dim. (GR)
Minimum starting temperature: -4°F (-20°C) ~ 122°F (50°C).
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits.
LISTING
UL/CUL listed and labeled.
Listed to UL 1598 and UL 8750.
Suitable for dry and damp locations.
CEC Compliant EM (please contact for more information)
ARRA compliant (optional).
7 or 10 years limited warranty. (optional)
5 years limited warranty.
