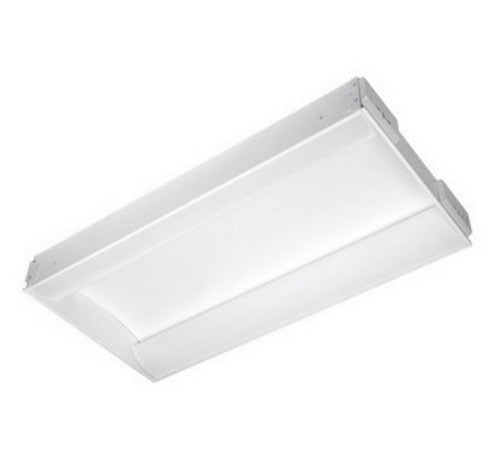

Utopia Lighting RSB-22 2x2 LED Recessed Side Basket

2 sold in last 8 hours
RSB-22-36L/27-UNV-GR
$205.26
$205.26
customers are viewing this product
This attractive recessed fixture with side baskets provide soft ambient in direct and indirect lighting. Direct and Indirect asymmetrically distributed lighting fixture reduce shadows and glare by combining aesthetically please lighting. It is an excellent choice for modern office environments, classrooms, hospitals and retail spaces.

FEATURES:

Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
White powder coated housing.
Slope side softly reflect light back downwards.
Smooth edges for easy handling.
T-bar safety clips are standard.
Reflectors were finished in textured matte white powder coated paint for uniform light distribution and over rust inhibiting phosphate coating for maximum corrosion resistance.

SPECIFICATIONS:

SHIELDING

Perforated white metal basket with white acrylic lens.

MOUNTING

Recessed mount in expose T-bar ceilings, Internal T-bar safety clips.
Field installed flange kits are available.
Suitable for direct insulation contact.

LED

High quality array LEDs.
LM80
Color Temperature: 2700/3000/3500/4000/5000(K)
Color Rendering Index: > 82.8
Calculated L70: 122,000 hours
Reported L70: >54,000 hours

ELECTRICAL

High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
Features included over voltage protection, surge, short circuit protection and over load protection.
Power Factor: typical > 0.95, THD <20, meets Class 1 or Class 2 circuit.
Philips Xitanium: 0-10V Dim to 1%(PH).
Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
Generic : 0-10V 10% dim. (GR)
Minimum starting temperature: -4°F (-20°C) ~ 122°F (50°C).
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits.

LISTING

UL/CUL listed and labeled.
Listed to UL 1598 and UL 8750.
Suitable for damp locations.
CEC Compliant EM
IC Rated
ARRA compliant. (optional)
5 years limited warranty.
7 or 10 years limited warranty. (optional)
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
Utopia Lighting RSB-22 2x2 LED Recessed Side Basket
36 Watts / 2133 Lumens / Generic 0-10V 10% d'm (Std.) / Warm White (2700K) - $205.26
