Utopia Lighting HV LED Led Enclosed And Gasket Vaportite Hi-bay

2 sold in last 8 hours

HV-2G-4-66LED/xx-UNV-(DM)-VH-PH

$372.19
$415.98
customers are viewing this product

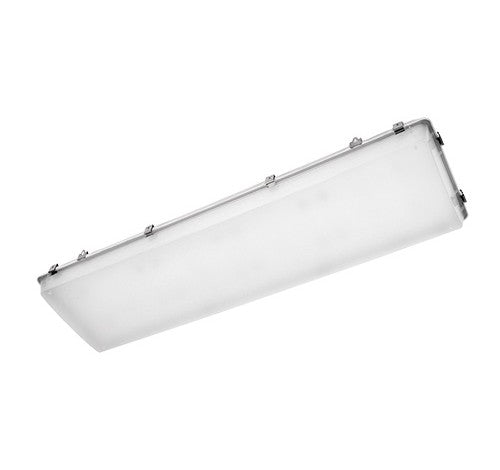

Enclosed and gasket LED Hi-Bay is appropriate for damp and wet locations as well as for protection against dust and other non-hazardous contaminants. It is often used in food industry, cold storage, warehouses, parking garages, commercial kitchens, car washing, utility tunnels, laundries and industrial facilities.

FEATURES:

Vaportite fixture that features fiber glass housing with white powder coated iron gear tray, hinge at both side with tool less latch for easy of accessibility and maintenance.
One piece impact resistant Acrylic, frosted ends and side linear prism diffuser.
Stainless steel latches as standard.
Fixtures provided with black end plug, 7/8” housing end holes (2) - Snaps and locks tight to maintain tight seal of unused end holes.
86% minimum average reflective white power coated high gloss white reflectors or specular aluminum reflector.
Housing utilizes off the shelf 1/2” fittings.
Poured in place gasket helps seal the enclosures form most hostile environments.
Optional Tamper resistance available.

SPECIFICATIONS:

MOUNTING

Compatible with chain, cable, dual pendant mount (by others)

LED

Color Temperature: 3000/3500/4000/5000 (K).
LED Module: High efficency up to 173 LPW.
Calculated L70: 122,000 hours
Reported L70: >54,000 hours
Poke in wire connectors.
Color variation within 3 MacAdam steps.
LM80

ELECTRICAL

High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
Dimming Control: 10~100%(std.), 1~100%, Bi-level step dim.
Power Factor: +0.9
Efficiency: +85%
Ambient Operating Temperature: -22°F (-30°C) ~ 131°F (55°C).
Constant Current, Class 2

ELCU-200
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits.

LISTING

UL/CUL listed and labeled.
Listed to UL 1598 and UL 8750.
NSF International certified.
NEMA 4X certified.
Suitable for damp and wet locations.
CEC Compliant EM (please contact for more information).
Assembled in USA.
ARRA compliant.
IP 67 rated.
5 years limited warranty.
7 or 10 years limited warranty. (optional)
