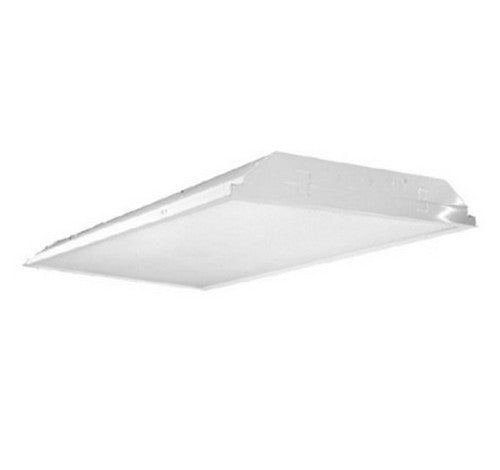

Utopia Lighting ELT22-2G 2x2 LED Recessed Troffer
2
sold in last
8
hours
ELT22-2G-27LED/27-UNV-SD50
$292.38
customers are viewing this product
PRODUCT DESCRIPTION
This recessed, low-profile designed with an acrylic lens, high performance luminaire provides general illumination. Its high efficiency, great performance and value make it an ideal choice for commercial and institutional environments.
FEATURES:
100% acrylic, clear prismatic, pattern #12 with minimum 0.1” thickness A12 lens as standard.
Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
Standard steel door frame allows easy lens replacement without tool. Unique door frame design delivers a premium extruded appearance. Smooth edges for easy handling. Powder-painted, door steel latches provide easy, secure door closure.
Painted parts finished with high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
SPECIFICATIONS:
MOUNTING
Recessed ceiling mount.
Compatible with most ceiling types.
Field installed flange kit. (available as option)
LED
High quality array LEDs
LM80
Color Temperature: 2700/3000/3500/4000/5000 (K)
Color Rendering Index: > 80
Calculated L70: 122,000 hours
Reported L70: >54,000 hours
ELECTRICAL
High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
Features included over voltage protection, surge, short circuit protection and over load protection.
Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
Philips Xitanium: 0-10V Dim to 1%(PH).
Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
Generic : 0-10V 10% dim. (GR)
Minimum starting temperature: -4°F (-20°C) ~ 122°F (50°C).
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits.
LISTING
UL/CUL listed and labeled.
Listed to UL 1598 and UL 8750.
Recessed Luminaires, Type IC
DLC listed.
Suitable for damp locations.
Suitable for damp locations.
CEC Compliant EM (please contact for more information)
5 years limited warranty.
7 or 10 years limited warranty. (optional)
ARRA compliant (optional).
LM-79 (DLC listed products only)
Utopia Lighting ELT22-2G ELT14-2G 2x2 LED Recessed Troffer
FEATURES:
100% acrylic, clear prismatic, pattern #12 with minimum 0.1” thickness A12 lens as standard.
Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
Standard steel door frame allows easy lens replacement without tool. Unique door frame design delivers a premium extruded appearance. Smooth edges for easy handling. Powder-painted, door steel latches provide easy, secure door closure.
Painted parts finished with high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
SPECIFICATIONS:
MOUNTING
Recessed ceiling mount.
Compatible with most ceiling types.
Field installed flange kit. (available as option)
LED
High quality array LEDs
LM80
Color Temperature: 2700/3000/3500/4000/5000 (K)
Color Rendering Index: > 80
Calculated L70: 122,000 hours
Reported L70: >54,000 hours
ELECTRICAL
High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
Features included over voltage protection, surge, short circuit protection and over load protection.
Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
Philips Xitanium: 0-10V Dim to 1%(PH).
Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
Generic : 0-10V 10% dim. (GR)
Minimum starting temperature: -4°F (-20°C) ~ 122°F (50°C).
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits.
LISTING
UL/CUL listed and labeled.
Listed to UL 1598 and UL 8750.
Recessed Luminaires, Type IC
DLC listed.
Suitable for damp locations.
Suitable for damp locations.
CEC Compliant EM (please contact for more information)
5 years limited warranty.
7 or 10 years limited warranty. (optional)
ARRA compliant (optional).
LM-79 (DLC listed products only)
Utopia Lighting ELT22-2G ELT14-2G 2x2 LED Recessed Troffer
