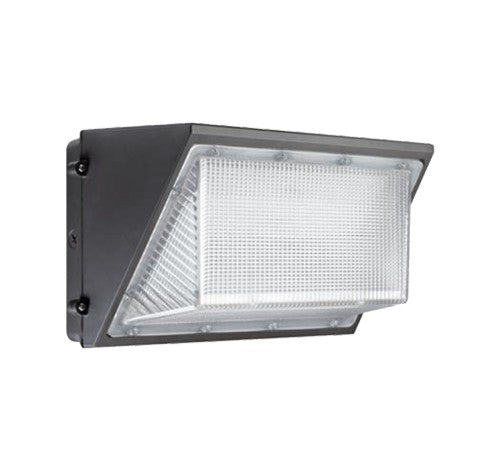

The polycarbonate optical lens with UV stabilizers lens LED wall pack is ideal for security, pathway and perimeter lighting, and building entryways and walkways.
FEATURES:
Sealed die-casting profile for indoor and outdoor.
Housing with 3 pieces of 1/2” threaded hole for
easier wire connections.
Dark bronze finish is standard.
SPECIFICATIONS:
MOUNTING
Wall mounting only.
Suitable for junction box mounting and surface
mounting.
COVER
Polycarbonate clear optical lens with UV stabilizers
prevent from yellowing and deformation.
LED
Lumileds 3030 LED chips.
Color temperature: 4000/5000 (K)
Lumen efficiency: up to 128lm/W
Color rendering index: >70
Life span: 50,000 hrs
ELECTRICAL
30/40/65/125LED : non-dim.
90LED : 0-10V dimmable.
Input voltage: 120-277Vac., 50/60Hz
Operating temperature:
-22ºF (-30ºC) to 113ºF (45ºC)
Surge protection: Line-Line 1kV, Line-Earch 2kV
Optional photocell.
UL 1310 listed.
LISTING
UL / cUL listed.
Listed to UL 1598 and UL 8750.
DLC listed. 1
Suitable for wet location.
5 years limited warranty.
