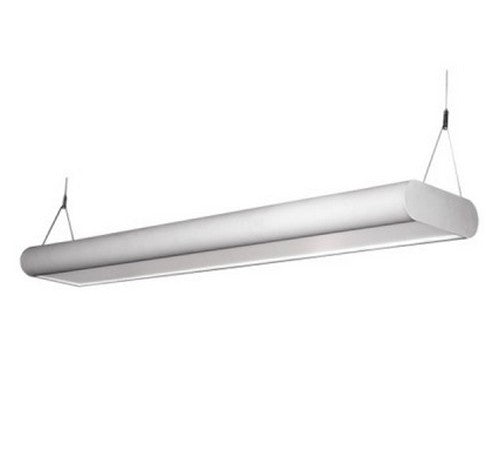

Utopia Lighting CURVA-R8 LED Architectural Direct/Indirect Suspended Light, 8 Foot

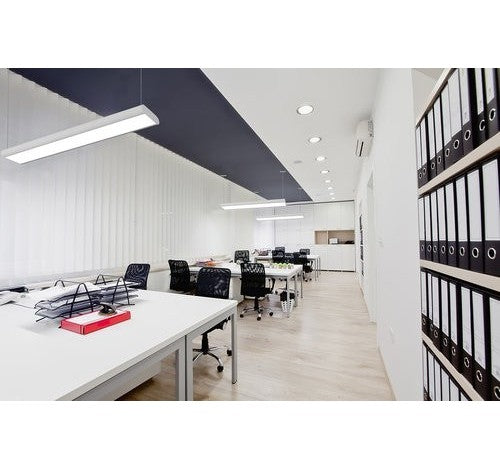

Architectural indoor, direct/indirect suspended light for LED system and fluorescent lamps. Reflected from the ceiling it creates soft and diffused lighting that ensures maximum visual comfort and balanced shadows. It can be installed individually or in a continuous line. Use for general office, banking, retail and educational environments.

FEATURES:

4’ fixture sections for nominal suspension spacing of 4’. Using 4’ sections can be joined to form longer length fixtures.
Extruded Aluminum Housing. ( 9”wide x 3”deep )
Textured matte white polyester powder paint.
Up light and down light distribution available. (Customized distribution available)
Die cast aluminum flat end caps.

SPECIFICATIONS:

SHIELDING

Premium smooth white acrylic diffuser.

MOUNTING

Suspended mounting provided with adjustable aircraft suspension system.

LED

Samsung LEDs available in 2700/3000/3500/ 4000/5000K color temperature.
Nominal Lamp Life: 100,000 hours.
Reported L70 hours: +60,000 (55°C).
Custom wattage and lumen available upon request.
CRI 80+

ELECTRICAL

High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
Dimming Control: 0-10V dim 1% (std.), 1~100%, Bi-level step dim.
Power Factor: +0.9
Efficiency: +85%
Ambient Operating Temperature: -4°F (-20°C) ~ 122°F (50°C).
Constant Current, Class 2.
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits.

LISTING

UL / CUL listed.
Listed to UL 1598 and UL 8750.
ARRA compliant. (optional)
7 or 10 years limited warranty. (optional)

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
