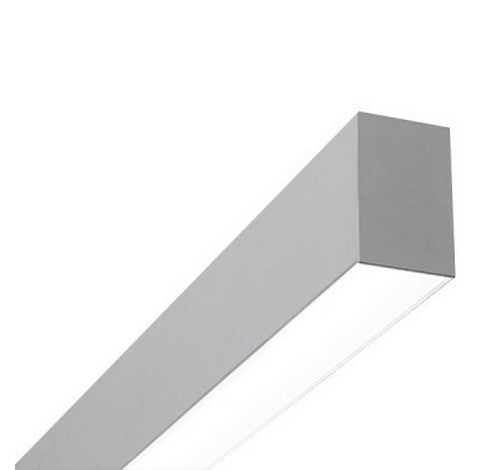

Utopia Lighting CUBE2-SS-4 Cube2 4-Foot Linear LED Architectural Screw Slot Mount (Downlight Only)

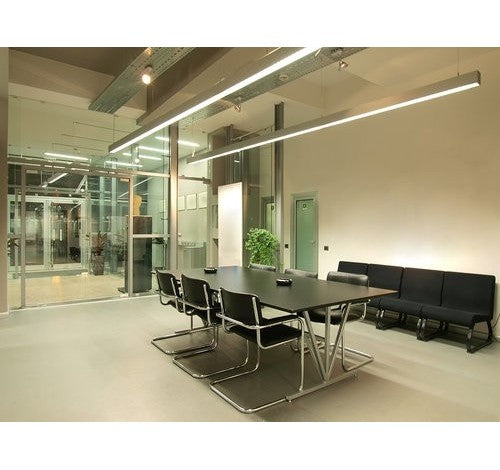

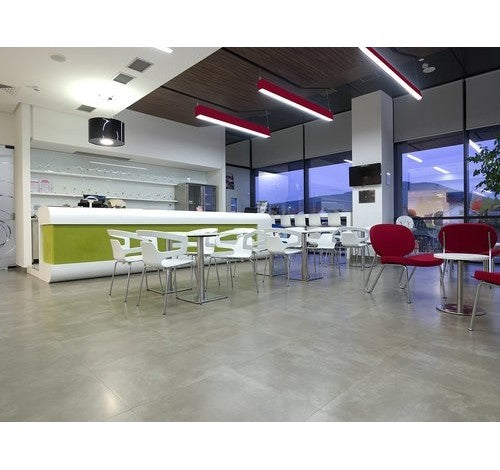

The CUBE is a featured Architectural Linear fixture. Housing is formed by cold-rolled steel with a highly reflective die-formed white painted steel reflector. The snap-in acrylic lens has a matte finish and a diffuser (.125” thick) which is removable for LED module replacement. It is used for multiple applications such as commercial, general office, banking, retail and educational environments.
High quality arrayLEDs
Color Temperature: 2700/3000/3500/4000/ 5000 (K), and tunable white -275 (2700~5000K)
Color Rendering Index: >80 (optional>90)
Nominal Lamp Life: 100,000 hours
Reported L70 hours: +60,000 (55°C)
High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
Features included over voltage protection, surge, short circuit protection and over load protection.
Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
0-10V dimmable driver as standard.
0-10VDC dimming 1%~100%.
Minimum starting temperature: -4°F (-20°C) ~ 122°F (50°C).
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system.
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits
Standard powder-coat textured white painted finish on exposed trim, consult factory for custom colors.
Comes with snap-in acrylic lens as standard.
UL / CUL listed.
Listed to UL 1598 and UL 8750.
UL listed for dry & damp location.
CEC Compliant EM (please contact for more information)
ADA compliant (less than 4” off wall).
Assembled in USA (optional)
5 years limited warranty.
7 or 10 years limited warranty. (optional)
