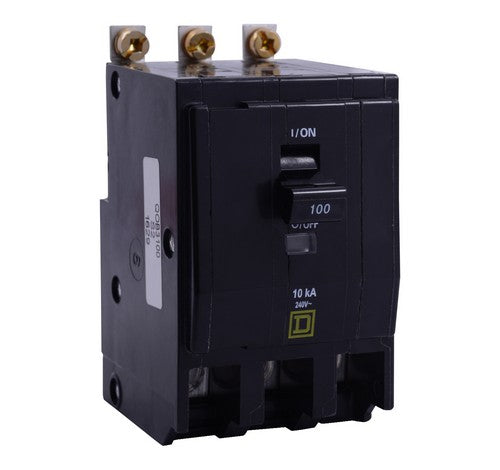

Square D QOB3100 100 Amp Miniature Circuit Breaker 10 KA 120~240 VAC

Product: Miniature circuit-breaker
Range : QO
Line Rated Current: 100 A
System Voltage:
120 V AC
120/240 V AC
240 V AC
Mounting Type: Bolt-on
Number of Poles: 3P
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Box lugs
Interrupt Rating:
10 kA at: 120/240 V AC 50/60 Hz
10 kA at: 240 V AC 50/60 Hz
10 kA at: 120 V AC 50/60 Hz
Number of Panel Spaces: 3
Wire Size: AWG 4...AWG 2/0 (copper or aluminium)
Height: 3.5 in
Depth: 2.91 in
Width: 2.25 in
Certifications:
CSA
UL listed
Ambient Rating: 104 °F (40 °C)
GTIN: 00785901019718
Package weight (Lbs): 1.06
Product environmental profile: Available
Warranty period: 18 months
