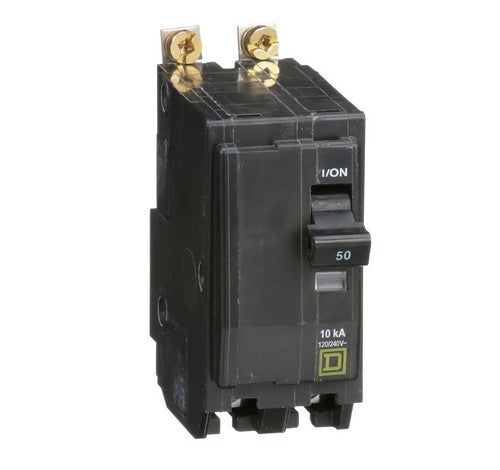

Square D QOB250 50 Amp Miniature Circuit Breaker 10 KA 120~240 VAC
2
sold in last
8
hours
QOB250
$38.00
customers are viewing this product
PRODUCT DESCRIPTION
Product: Miniature circuit-breaker
Range : QO
Line Rated Current: 50 A
System Voltage:
120V AC
120/240 V AC
48V DC
Mounting Type: Bolt-on
Number of Poles: 1P
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Box lugs
Interrupt Rating:
5 KA at: 48V DC
10 KA at: 120/240 V AC 50/60 Hz
10 KA at: 120V AC 50/60 Hz
Number of Panel Spaces: 2
Wire Size: AWG 8...AWG 2 (copper or aluminium)
Height: 3.12 in
Depth: 2.91 in
Width: 1.5 in
Certifications:
CSA
UL listed
Ambient Rating: 104 °F (40 °C)
GTIN: 00785901416982
Package weight (Lbs): 0.55
Product environmental profile: Available
Warranty period: 18 months
Range : QO
Line Rated Current: 50 A
System Voltage:
120V AC
120/240 V AC
48V DC
Mounting Type: Bolt-on
Number of Poles: 1P
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Box lugs
Interrupt Rating:
5 KA at: 48V DC
10 KA at: 120/240 V AC 50/60 Hz
10 KA at: 120V AC 50/60 Hz
Number of Panel Spaces: 2
Wire Size: AWG 8...AWG 2 (copper or aluminium)
Height: 3.12 in
Depth: 2.91 in
Width: 1.5 in
Certifications:
CSA
UL listed
Ambient Rating: 104 °F (40 °C)
GTIN: 00785901416982
Package weight (Lbs): 0.55
Product environmental profile: Available
Warranty period: 18 months
