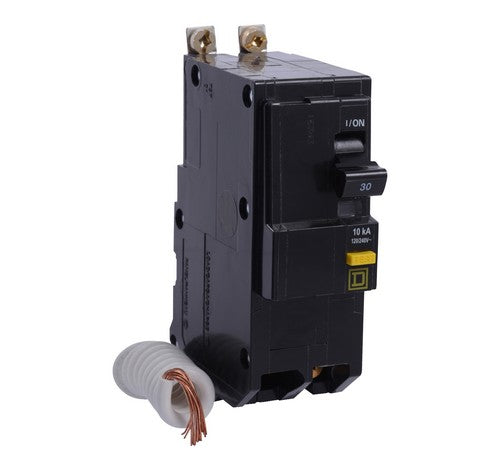

Square D QOB230GFI 30 Amp Miniature Circuit Breaker 10 KA 120~240 VAC
2
sold in last
8
hours
QOB230GFI
$260.00
customers are viewing this product
PRODUCT DESCRIPTION
Product: Miniature circuit-breaker
Range : QO
Line Rated Current: 30 A
System Voltage:
120 V AC
120/240 V AC
Mounting Type: Bolt-on
Number of Poles: 2P
Circuit Breaker Type: Ground fault protecting class A 6 mA
Ratings: Not rated
Electrical Connection: Pressure plate
Interrupt Rating:
10 kA at: 120/240 V AC 50/60 Hz
10 kA at: 120 V AC 50/60 Hz
Number of Panel Spaces: 2
Wire Size:
AWG 14...AWG 8 (copper)
AWG 12...AWG 8 (aluminium)
Height: 4.12 in
Depth: 2.91 in
Width: 1.5 in
Certifications:
CSA
UL listed
Ambient Rating: 104 °F (40 °C)
GTIN: 00785901563037
Package weight (Lbs): 0.959
Product environmental profile: Available
Warranty period: 18 months
Range : QO
Line Rated Current: 30 A
System Voltage:
120 V AC
120/240 V AC
Mounting Type: Bolt-on
Number of Poles: 2P
Circuit Breaker Type: Ground fault protecting class A 6 mA
Ratings: Not rated
Electrical Connection: Pressure plate
Interrupt Rating:
10 kA at: 120/240 V AC 50/60 Hz
10 kA at: 120 V AC 50/60 Hz
Number of Panel Spaces: 2
Wire Size:
AWG 14...AWG 8 (copper)
AWG 12...AWG 8 (aluminium)
Height: 4.12 in
Depth: 2.91 in
Width: 1.5 in
Certifications:
CSA
UL listed
Ambient Rating: 104 °F (40 °C)
GTIN: 00785901563037
Package weight (Lbs): 0.959
Product environmental profile: Available
Warranty period: 18 months
