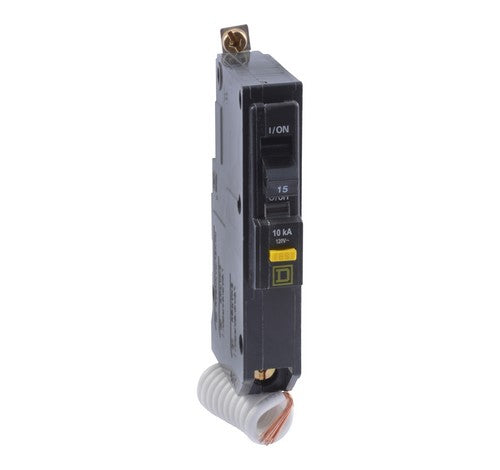

Product: Miniature circuit-breaker
Range : QO
Line Rated Current: 15 A
System Voltage:
120 V AC
Mounting Type: Bolt-on
Number of Poles:1P
Circuit Breaker Type: Ground fault protecting class A 6 mA
Ratings: Not rated
Electrical Connection: Pressure plate
Interrupt Rating:
10 kA at: 120 V AC 50/60 Hz
Number of Panel Spaces: 1
Wire Size: AWG 14...AWG 8 (copper or aluminium)
Height: 4.12 in
Depth: 2.91 in
Width: 0.75 in
Certifications:
CSA
UL listed
Ambient Rating: 104 °F (40 °C)
GTIN: 00785901368700
Package weight (Lbs): 0.53
Product environmental profile: Available
Warranty period: 18 months
