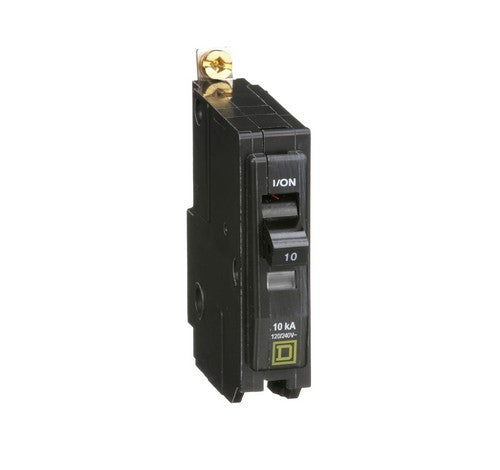

Square D QOB110 10 Amp Miniature Circuit Breaker 120~240 VAC
2
sold in last
8
hours
QOB110
$26.00
customers are viewing this product
PRODUCT DESCRIPTION
Product: Miniature circuit-breaker
Range : QO
Line Rated Current: 10 A
System Voltage:
120 V AC
120/240 V AC
48 V DC
Mounting Type: Bolt-on
Number of Poles: 1P
Circuit Breaker Type: Standard
Electrical Connection: Pressure plate
Interrupt Rating:
5 kA at: 48 V DC
10 kA at: 120/240 V AC 50/60 Hz
10 kA at: 120 V AC 50/60 Hz
Number of Panel Spaces: 1
Wire Size: AWG 14...AWG 8 (copper or aluminium)
height: 3 in
depth: 2.91 in
width: 0.75 in
Certifications:
CSA
UL listed
Ambient Rating: 104 °F (40 °C)
GTIN: 00785901477495
Package weight(Lbs): 0.289
Product environmental profile: Available
Warranty period: 18 months
Range : QO
Line Rated Current: 10 A
System Voltage:
120 V AC
120/240 V AC
48 V DC
Mounting Type: Bolt-on
Number of Poles: 1P
Circuit Breaker Type: Standard
Electrical Connection: Pressure plate
Interrupt Rating:
5 kA at: 48 V DC
10 kA at: 120/240 V AC 50/60 Hz
10 kA at: 120 V AC 50/60 Hz
Number of Panel Spaces: 1
Wire Size: AWG 14...AWG 8 (copper or aluminium)
height: 3 in
depth: 2.91 in
width: 0.75 in
Certifications:
CSA
UL listed
Ambient Rating: 104 °F (40 °C)
GTIN: 00785901477495
Package weight(Lbs): 0.289
Product environmental profile: Available
Warranty period: 18 months
