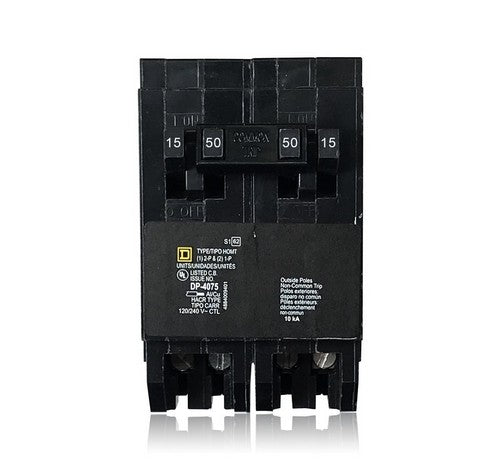

Square D Homeline™ 2-Pole Quad tandem circuit breaker features thermal magnetic molded case for extra protection. Circuit breaker has current rating of 15 Amps on outside pole and 50 Amps on inside/common trip pole. It has voltage rating of 120/240 VAC and interrupt rating of 10 kilo-Amps. It accommodates aluminum wire of range 12 - 6 AWG and copper wire of range 14 - 6 AWG.
The 1-Phase circuit breaker measures 2 Inch x 2.980 Inch x 3.130 Inch and provides long-time instantaneous trip functions to perform efficiently. It offers overload and short circuit protection for added safety. Circuit breaker uses plug-on mounting to hold firmly. It is ideal for load center applications. Circuit breaker meets UL/CSA standards.
SPECIFICATIONS :
Brand: Square D
Item:
Mounting: Plug-On
Number Of Poles: 2
Amperage Rating: 15/50
Voltage Rating: 120/240
Application: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Connection: SCREW #12-6 AWG(AL/CU)
EU RoHS Indicator: Y
GTIN: 00785901377030
Interrupt Rating: 10KA
Dimensions: 2 Inch Width x 2.980 Inch Depth x 3.130 Inch Height
Length: 2.98 IN
Width: 3.0000
Model: HOMT
Operating Temperature: CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION.
Returnable Indicator: Y
Spanish Description: MINIATURE CIRCUIT BREAKER
Special Features: TANDEM
Standard: UL LISTED - CSA CERTIFIED
Standards: UL Listed, CSA Certified, Fed. Specs W-C-375B/GEN
Sub Brand: HOMELINE
Trip Type: THERMAL MAGNETIC BREAKER
Wire Size: 14-8 AWG (Aluminum/Copper)
UPC: 785901377030
