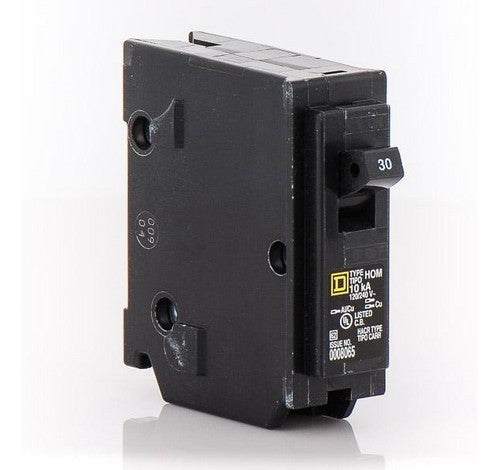

Square D HOM130 30 Amp Miniature Circuit Breakers 10KA 120 VAC
2
sold in last
8
hours
HOM130
$7.00
customers are viewing this product
Square D 30 AMiniature Circuit Breaker 120/240V 10kA, 120/240VAC, 15A, HomeLine, Miniature Circuit Breaker provides overload and short circuit protection,Screw #14-8 AWG(Al/Cu),UL Listed - CSA Certified
SPECIFICATIONS :
Product : Miniature circuit-breaker
Range : Homeline
Line Rated Current: 30 A
Certifications: UL listed
System Voltage: 120 V AC
Mounting Type: Plug-in
Number of Poles: 1P
Short Circuit Current Rating: 10 kA
Number of Spaces : 1
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection
Clamp terminal for 2 cables
Wire Size :
AWG 14...AWG 8 for 1 cable(s) (aluminium/copper)
AWG 14...AWG 10 for 2 cable(s) (copper)
height : 3.13 in
width : 1 in
depth : 2.98 in
Environment: ambient air temperature for operation 104 °F (40 °C)
UPC: 785901065227
SPECIFICATIONS :
Product : Miniature circuit-breaker
Range : Homeline
Line Rated Current: 30 A
Certifications: UL listed
System Voltage: 120 V AC
Mounting Type: Plug-in
Number of Poles: 1P
Short Circuit Current Rating: 10 kA
Number of Spaces : 1
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection
Clamp terminal for 2 cables
Wire Size :
AWG 14...AWG 8 for 1 cable(s) (aluminium/copper)
AWG 14...AWG 10 for 2 cable(s) (copper)
height : 3.13 in
width : 1 in
depth : 2.98 in
Environment: ambient air temperature for operation 104 °F (40 °C)
UPC: 785901065227
Have Questions?Ask a BuyRite Electric Expert
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
