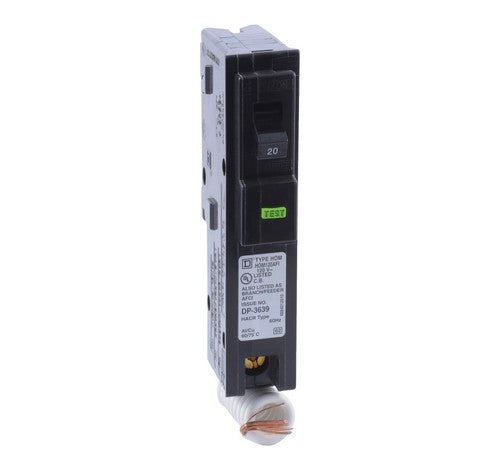

Square D HOM120AFI Homeline™ One-Pole 15 Amp Arc Fault Miniature Circuit Breaker Plug-On Mount 10KA 120 Volt AC

Square D Homeline™ 1-Pole Arc fault miniature circuit breaker features thermal magnetic molded case for extra protection. Circuit breaker has current rating of 20 Amps, voltage rating of 120 VAC and interrupt rating of 10 kilo-Amps. It accommodates copper/aluminum wire of range 14 - 8 AWG and copper wire of range 14 - 10 AWG.

The 1-Phase circuit breaker measures 1 Inch x 2.980 Inch x 3.130 Inch and provides long-time instantaneous trip functions to perform efficiently. It offers overload and short circuit protection for added safety. Circuit breaker uses plug-on mounting to hold firmly. It is ideal for load center applications. Circuit breaker is UL listed/CSA certified and meets Fed. Specs W-C-375B/GEN standards.

SPECIFICATIONS :

Brand: Square D
Item: Miniature Circuit Breaker
Mounting: Plug-On
Number Of Poles: 1
Amperage: 20 A
Amperage Rating: 20
Voltage Rating: 120/240
Application: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Connection: SCREW #12-6 AWG(AL/CU)
EU RoHS Indicator: Y
GTIN: 00785901301325
Interrupt Rating: 10KA
Dimensions: 1 Inch Width x 2.980 Inch Depth x 3.130 Inch Height
Length: 2.98 IN
Width: 3.9000
Model: HOM-AFI
Returnable Indicator: Y
Special Features: ARC-FAULT
Standard: UL LISTED - CSA CERTIFIED
Standards: UL Listed, CSA Certified, Fed. Specs W-C-375B/GEN
Sub Brand: HOMELINE
Trip Type: Thermal-Magnetic
Wire Size: 14-8 AWG (Aluminum), (2) 14-8, 14-10 AWG (Copper)
UPC: 785901301325
