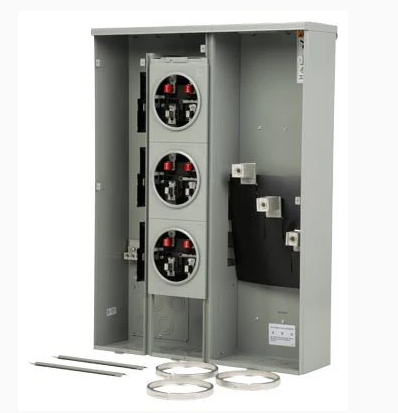

Siemens WEP4312 Uni-PAK 3-Gang 400-Amp Ring Style Multi-Family Metering - EUSERC Certified

2 sold in last 8 hours
Siemens

WEP4312

$3,325.00
$3,325.00
customers are viewing this product

Siemens WEP4312

WEP4312 Product Description

Siemens Uni-PAK Metering offers maximum flexibility and ease of installation to meet the service requirements of multiple position metering projects. The outdoor/indoor devices are available in 2 through 6-Gang set-ups which consist of a pull section with main lugs or stud terminations and 4/5 jaw meter sockets with tenant circuit breaker provisions. This device accepts overhead or underground service terminations and is designed for wall-hung surface or semi-flush mounting. The devices are factory pre-bussed in a compact enclosure to ensure ease of handling and installation and to maximize wall-space efficiency.

225 Amp branch tenant provisions
Bus rated for 400 Amp
Ring style meter construction
Individual split covers
UL listed for 60/75°C conductors
For small apartment buildings, small professional and commercial buildings
Completely self-contained meter centers
Compact, pre-bussed, easy to handle, hang and wire
Barriered, sealable compartment for unmetered current-carrying parts
Al/Cu lay-in lugs, except 2 position 125 Amp units
Top or bottom feed
Bottom and rear branch wiring exits (neutral and ground at bottom only)
ANSI #61 light gray electrodeposited pain on zinc-coated G90 steel
Field installable 5th jaw kit
Circuit breaker provisions accept the following types of breakers: QP, QPH, HQP, MP-T, MP-HT, MP-MT, QS, QSH, QSHH, HQS, HQSH
Outdoor surface mounted enclosures
Contact local utility to confirm meter socket approval before installation

About Siemens:

Siemens is a global powerhouse focusing on the areas of electrification, automation and digitalization. One of the world’s largest producers of energy-efficient, resource-saving technologies. In infrastructure and industry solutions the company plays a pioneering role.
