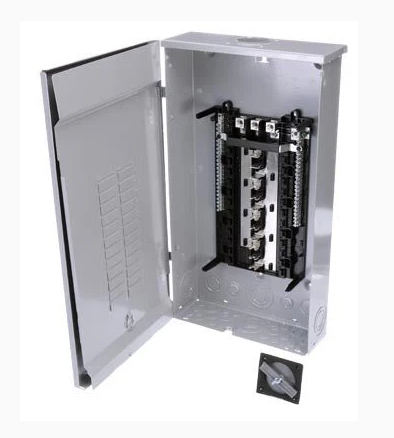

Siemens SW1224L3125

SW1224L3125 Product Description

The new Siemens ES Series Load Center is the smart choice when value and quick installation are of highest priority. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.

A 3-phase, 120/240 or 120/208-Volt, 125-Amp main lug load center with 12-spaces and 24-circuits
Aluminum bus
Ground bar field installed
Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
Dual side inboard neutral
Invertible for bottom feed application
Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
Pre-positioned bond screw eliminated bond straps/screw assemblies and reduces the risk of losing components in the field
Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
Rigid, sturdy base pan provides ruggedness required for harsh applications
NEMA type 3: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation or internal icing
