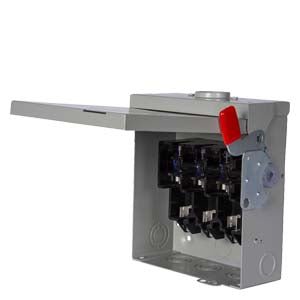

Siemens GF224NR - Circuit Protection General Duty Safety Switch - 2-Pole 2-Fuse
2
sold in last
8
hours
GF224NR
$355.00
customers are viewing this product
PRODUCT DESCRIPTION
Siemens GF224NR
GF224NR Product Description
Siemens Low Voltage Circuit Protection General Duty Safety Switch. 2-Pole 2-Fuse and solid neutral Fused in a type 3R enclosure (outdoor). Rated 240VAC (200A). Horse power (Std, Time delay) fused: 1-PH 2-W (15, - ), 3-PH 3-W (25, 60), 250VDC (40). Special features: service entrance labeled suitable for 3-PH motor loads.
SPECIFICATION:
Manufacturer: Siemens
SKU: GF224NR
UPC: 783643149236
Type : Enclosed Fusible
Voltage Rating : 240 VAC
Amperage Rating : 60 A
Horsepower : 7-1/2 hp, 10 hp
Phase : 1/3
Frequency Rating : 60 Hz
Number of Poles : 2
Number of Wires : 3
Short Circuit Rating : 100 kA
Contact Form : DPST
Actuator Type : Lever Operated
Insulation Type : Non-Insulated
Enclosure Type : NEMA 1
Mounting Type : 2/3 Point Hole
Terminal Type : Lug
Temperature Rating : -20 to 120 deg F
Dimensions : 14.16 in H x 7.67 in W x 5.95 in D
Material : Steel
