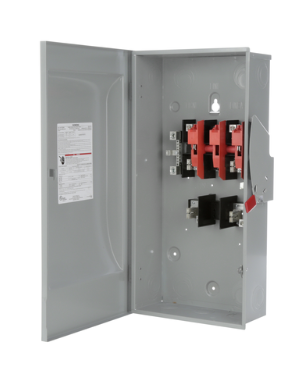

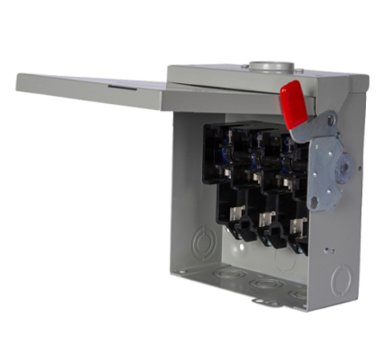

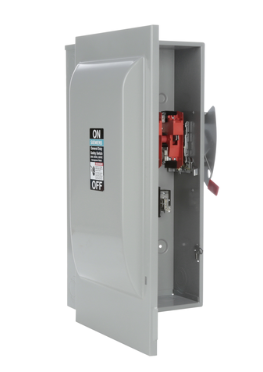

Siemens GF224N

GF224N Product Description

Siemens Low Voltage Circuit Protection General Duty Safety Switch. 2-Pole 2-Fuse and solid neutral Fused in a type 1 enclosure (indoor). Rated 240VAC (200A). Horse power (Std, Time delay) fused: 1-PH 2-W (15, - ), 3-PH 3-W (25, 60), 250VDC (40). Special features: service entrance labeled suitable for 3-PH motor loads.

Specifications:

Brand: Siemens
UPC: 783643148086
Action: SINGLE THROW
Actuator: SINGLE THROW
Ambient Temperature: -29 degrees C
Amperage: 200 Amp
Applications: DISCONNECTING MEAN FOR SERVICEENTRANCE/LOADS
Enclosure: NEMA1
Frequency; 60 Hz
Insulated? No
Material: Steel
Mounting Type: 2 or 3 Point Mounting Holes
NEMA Size: 1
Net Weight: 41,491 lb
Number of Poles: 2 Pole
Number of Wires: 3 Wire
Operating Cycles: 8000
Operating Temperature: -20 To 120 degrees F
Standard: UL
Tc Connection: MECHANICAL LUGS
Type: Fusible
Voltage: 240 Volt
Wattage: 3 Watt
