Siemens ED63B015

ED63B015 Product Description

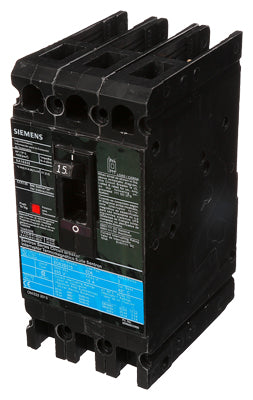

Siemens Low Voltage SENTRON Molded Case Circuit Breaker With Thermal - Magnetic Trip Unit. Standard 40 Deg C Breaker Ed Frame With Standard Breaking Capacity. Meets UL 489 / IEC 60947-2 Standards. 15a 3-Pole Breaker (18kaic At 600v) (25kaic At 480v). Special Features: Load Lugs Only (Sa1e025) Wire Range: 14 - 10awg (Cu) / 12 - 10awg (Al). Dimensions (W X H X D) In: 3 X 6.35 X 3.92.

SPECIFICATION:

Manufacturer:  Siemens
SKU: ED63B015
UPC: 783643209664
Type :  Type ED6 Low Voltage
Voltage Rating : 600 VAC/250 VDC
Amperage Rating : 15 A
Frequency Rating  : 50/60 Hz
Interrupt Rating : 18 kA
Frame :  ED
Trip Type : Thermal Magnetic
Number of Poles : 3
Phase :  3
Connection Type :  Load Lug
Wire Size :  14 to 10 AWG, 12 to 10 AWG
Temperature Rating:  40 deg C
Dimensions:  4.2 in L x 5.8 in W x 7.5 in H
