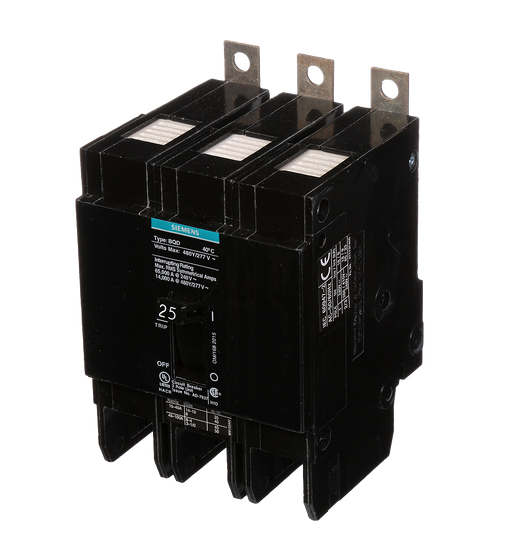

Siemens BQD325

BQD325 Product Description

BREAKER BQD 3P 25A 480VAC 14KA 10 KAIC

Specifications:

number of poles 3
suitability for operation CONSTRUCTION

Electricity:
continuous current rated value 25 A
supply voltage frequency rated value 50/60 Hz Yes

Environmental conditions:
ambient temperature during operation maximum 40 °C

Model:
product brand name SIEMENS
special product feature PANELBOARD MOUNT
type of electrical connection LOW TAB\

Mechanical Design:
depth [in] 4 in
design of the overload release THERMAL MAGNETIC TRIP UNIT
design of the product BQD
height [in] 3 in
material of the enclosure MOLDED CASE CIRCUIT BREAKER
size of the circuit-breaker 100A
width [in] 3 in

General product approval
standard UL 489 CSA-C22.2 IEC 60947-2
